SurgeX SX-AP-169 Axess Plus 9-Outlet Rackmount 16A Surge Eliminator / Power Conditioner
SX-AP-169
|U7-SXAP169
Shop All SurgeX
SurgeX SX-AP-169 Axess Plus 9-Outlet Rackmount 16A Surge Eliminator / Power Conditioner
SX-AP-169 | U7-SXAP169
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

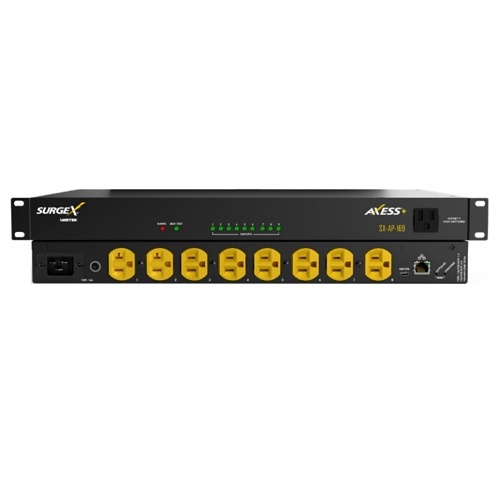

The SX-AP-169 is a universally mountable unit enclosed in a magnetic shielding steel enclosure. SX-AP-169 shall operate at 120 volts AC with a load rating of 16 amps. Each unit features a detachable line cord. There are 9 AC receptacles on the output with 8 outlets individually switched. Additionally, a USB port is included for out-of-band control and configuration. The Axess+ is equipped with remote turn-on capabilities enabled by wired Ethernet.
Main Features
- 120V, 7-Outlets 5-15R, 2-Outlets 5-20R
- IP-controlled PDU
- Advanced Series Mode
- Individually switchable receptacles
- Swappable power cord with lock
- Remote turn on/off, power cycling, and power sequencing
- Advanced scheduling, AutoPing, and threshold triggered events
- Remote power management and analytics
- Seamless integration with third-party control systems using SurgeX’s cloud-based platform, SurgeX CONNECT
General Information
Name: SurgeX SX-AP-169 Axess Plus 9-Outlet Rackmount 16A Surge Eliminator / Power Conditioner
Category: SurgeX, Batteries & Power Supplies, Power Strips & Surge Protectors, Surge Protection Modules
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number U7-SXAP169 Brand Name SurgeX Manufacturer Part Number SX-AP-169 Product Line Axess+ Product Model SX-AP-169
Depth 9.9" Weight 10.20lb Width 17.4"
Input Voltage 120V AC
