STI SS2102EX-FR Stopper Station Push Button, No Cover, Key-to-Reset Illuminated, 'EMERGENCY EXIT' Label French, Green
SS2102EX-FR
|SF-2102EXFR
Shop All Safety Technology International
STI SS2102EX-FR Stopper Station Push Button, No Cover, Key-to-Reset Illuminated, 'EMERGENCY EXIT' Label French, Green
SS2102EX-FR | SF-2102EXFR
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

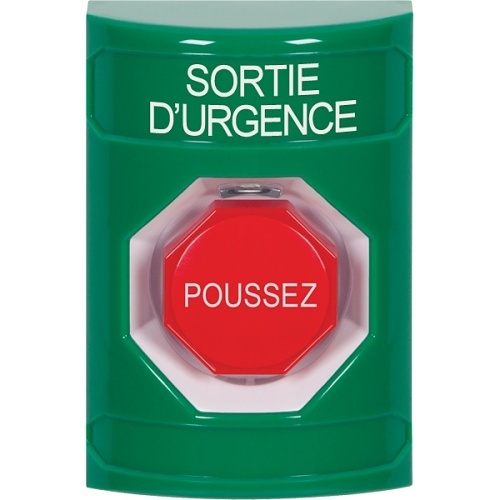

This Stopper® Station, key-to-reset push button switch is housed in a curved shell with EMERGENCY EXIT French messaging. Above the button is a multicolor 12-24 VAC/VDC LED illumination status bar (LED color options: red, green, and white). The push button includes two (2) Form “C” contacts, DPDT, rated 10 amps @ 125/250 VAC, 6 amps @ 30 VDC. Part of the Stopper® Station series, which is a multipurpose push button series that covers a wide range of applications both indoors and outdoors. This product's unique, curved design helps protect against accidental activation.
Main Features
- Key-to-Reset push button
- Raised EMERGENCY EXIT French label
- Two (2) Form “C” contacts, DPDT, rated 10 amps @ 125/250 VAC, 6 amps @ 30 VDC
- Multicolor illumination bar 12-24VAC/VDC LED (LED color options: red, green, and white)
- UL/cUL Listed
- ADA Compliant
General Information
Name: STI SS2102EX-FR Stopper Station Push Button, No Cover, Key-to-Reset Illuminated, 'EMERGENCY EXIT' Label French, Green
Category: Safety Technology International, Access Control, Egress Devices & Alarms, Emergency & Lockdown Buttons
UPC Code: 662950522003
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number SF-2102EXFR Brand Name Safety Technology International Cover Yes Manufacturer Part Number SS2102EX-FR Product Line Stopper Station Product Series SS2
Maximum Operating Temperature 250°F Minimum Operating Temperature -40°F
Material Polycarbonate
Print/Message Emergency Exit
Limited Warranty 3-Year
ADA Compliant Yes
