Panduit CJK6X88TGRD Mini-Com CAT6a UTP RJ45 TG Keyed Jack Module, Red
CJK6X88TGRD
|P9-K6X88TGRD
Shop All Panduit

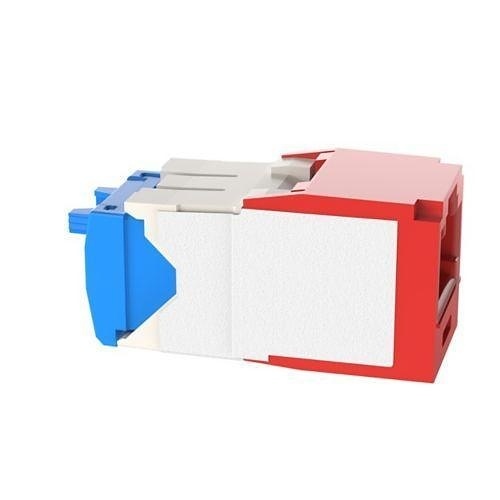

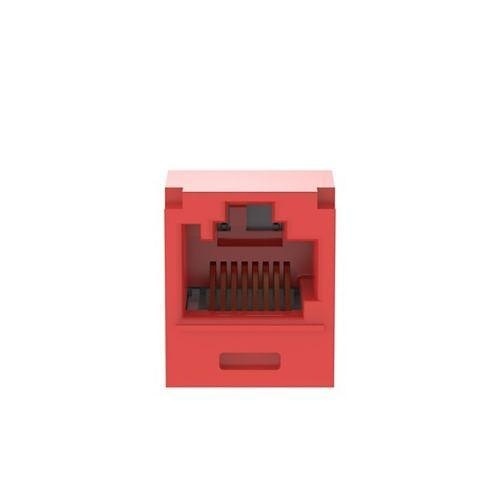

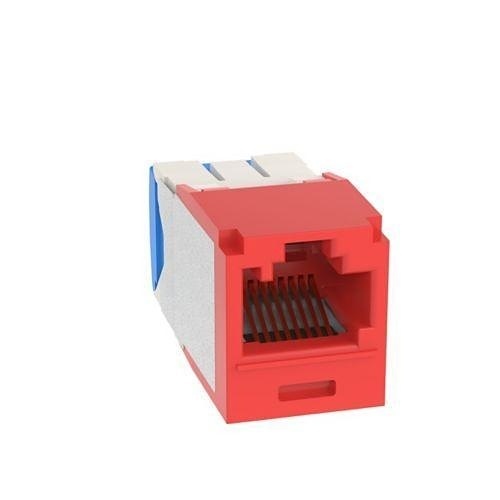

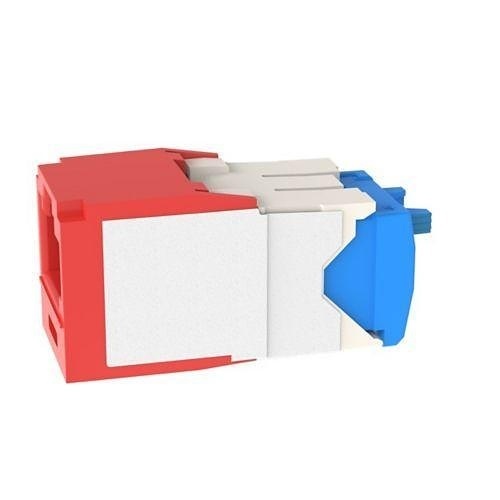

Panduit CJK6X88TGRD Mini-Com CAT6a UTP RJ45 TG Keyed Jack Module, Red
CJK6X88TGRD | P9-K6X88TGRD
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Category 6A/Class EA, 8-position, UTP jack module shall terminate 4-pair, 22 - 26 AWG, 100 ohm unshielded twisted pair cable and shall not require use of a punchdown tool. The termination cap shall be color-coded blue to designate Category 6A performance and shall include a universal label coded for T568A and T568B wiring schemes. The Mini-Com® TX6A™ 10Gig UTP Jack Module must be installed as part of the TX6A™ 10Gig UTP Copper Cabling System to achieve IEEE 10GBASE-T certified performance.
Main Features
- Category 6A/Class EA performance
- 8-position UTP jack module
- Terminates 4-pair, 22-26 AWG cable
- No punchdown tool required
- Color-coded blue termination cap
- Universal label for T568A/B wiring
- Part of TX6A 10Gig UTP System
- IEEE 10GBASE-T certified
General Information
Name: Panduit CJK6X88TGRD Mini-Com CAT6a UTP RJ45 TG Keyed Jack Module, Red
Category: Panduit, Data Comm & Networking, Cable Connectors, Inserts & Adapters
UPC Code: 74983189946
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-K6X88TGRD Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number CJK6X88TGRD Packaged Quantity 1 Product Line Mini-Com Product Name Mini-Com Network Connector Product Type Network Connector
Impedance 100Ohm
Connector Type RJ45
Color Blue Depth 1.50" Height 0.71" Material ABS, PC Width 0.62"
Length 1.50"
Environmentally Friendly Yes
