Aperçu

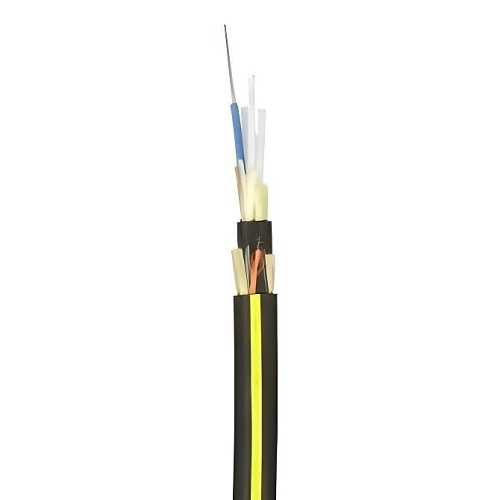

Dielectric Double Jacketed Fiber (DDJ) Cable is an integral part of the Panduit end-to-end fiber optic solution, designed to support today's data needs while meeting tomorrow's ever-advancing network requirements. The dry buffer tubes are protected by Kevlar re-enforced double jacketing eliminating the need for additional conduit or pathway installation and providing a smaller, crush-resistant cable for improved design flexibility and lower installed cost. All-dielectric construction eliminates the need for grounding and bonding, there by reducing installation time and cost. All Dielectric Double-Jacketed Fiber cables are Riser-rated (OFNR) and compliant with Low Smoke Zero Halogen (LSZH) specifications. Fiber types include OM4 multimode available in 6, 12 and 24 fiber counts as well as OS2 single-mode available in 6, 12, 24, 48 and 96 fiber counts.
Principales caractéristiques
- 96 fibers for high-capacity data transmission
- Dielectric Double Jacketed for durability
- Kevlar reinforcement for crush resistance
- No need for additional conduit installation
- All-dielectric construction eliminates grounding
- Riser-rated (OFNR) and LSZH compliant
- Available in OM4 multimode and OS2 single-mode
- Supports 6, 12, 24, 48, and 96 fiber counts
- Available in multiple fiber counts for flexibility
Renseignements généraux
Name: Panduit FSJD996 9UM OS2, 96-Fiber, Indoor / Outdoor
Category: Panduit, Wire & Cable, Fiber Optic Cables & Cords, Fiber Optic Cables
UPC Code: 613056832206
Country of Origin: . Country of origin is subject to change.
Spécifications
ADI Numéro du produit P9-FSJD996 Application/utilisation Aerial applications, Direct bury applications, Indoors, Tray rating for Industrial environments Code fabricant FSJD996 Gamme IndustrialNet Marque Panduit Nom de produit DDJ Fiber Cable, Ind/out OS2 96 Strand Riser-LSZH Quantité emballée 1 Série de produit IndustrialNet Type de produit Network Cable
Catégorie de fibre OS2 Classification de câble Riser Compatible avec Réseau Dispositif Mode de fibre optique monomode Nombre de fibres 96 Solide ou toronné Stranded Type de câble Fiber Optic Type de gaine TC
Couleur Bleu Matériau de gaine LSZH
Certification environnementale UL Intérieur/extérieur Indoor Respectueux de l'environnement Yes
