Panduit LCCN400-12W-6 Compression Connector Lug, 2-Hole, Narrow, 400kcmil, Copper
LCCN400-12W-6
|P9-CN40012W6
Shop All Panduit
Panduit LCCN400-12W-6 Compression Connector Lug, 2-Hole, Narrow, 400kcmil, Copper
LCCN400-12W-6 | P9-CN40012W6
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

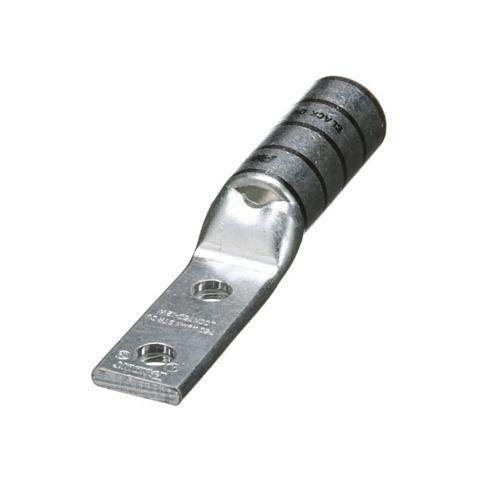

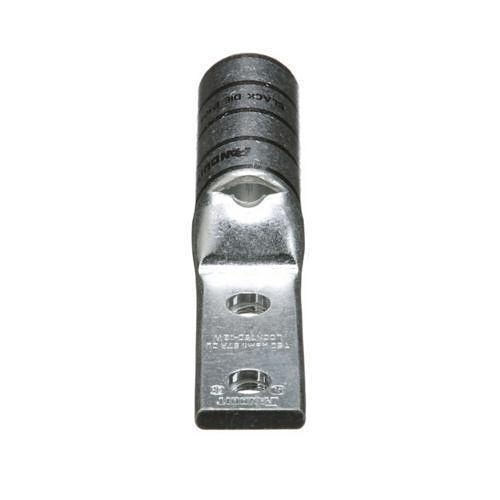

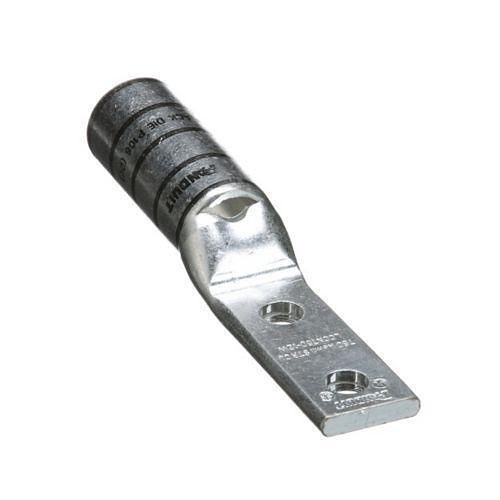

The LCCN400-12W-6 Tin Plated Copper Compression Lug, two-hole, long barrel, narrow tongue has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. An inspection window aids to visually assure full conductor insertion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
Main Features
- Tin plated copper construction
- Two-hole design with narrow tongue
- Long barrel for maximized crimps and wire pull-out strength
- Color-coded barrels with Panduit and competitor die index numbers
- Inspection window for verifying full conductor insertion
- UL Listed and CSA Certified to 35 KV
- Temperature rated to 90°C
General Information
Name: Panduit LCCN400-12W-6 Compression Connector Lug, 2-Hole, Narrow, 400kcmil, Copper
Category: Panduit, Batteries & Power Supplies, Power Accessories & Parts
UPC Code: 613056853249
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-CN40012W6 Brand Name Panduit Manufacturer Part Number LCCN400-12W-6
Length 5.85"
