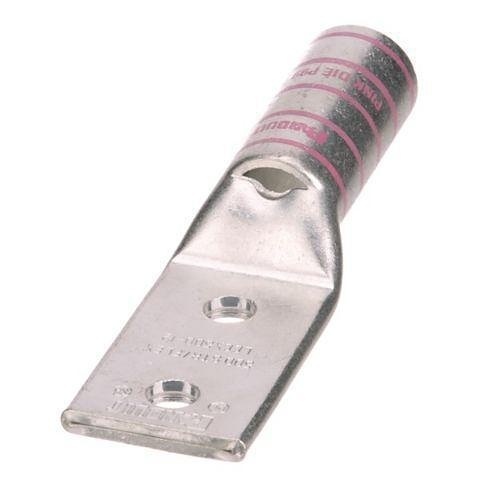

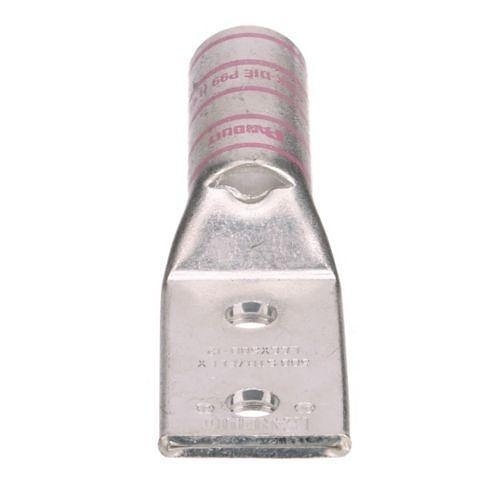

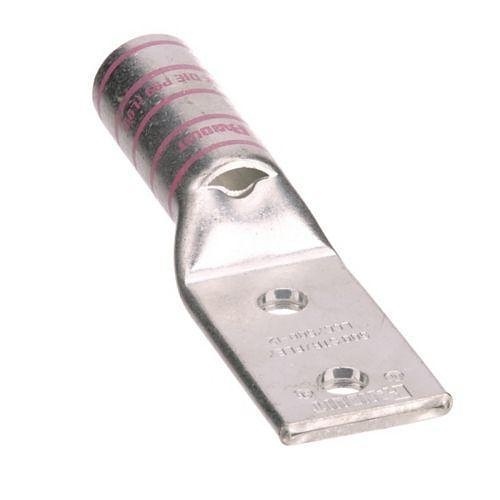

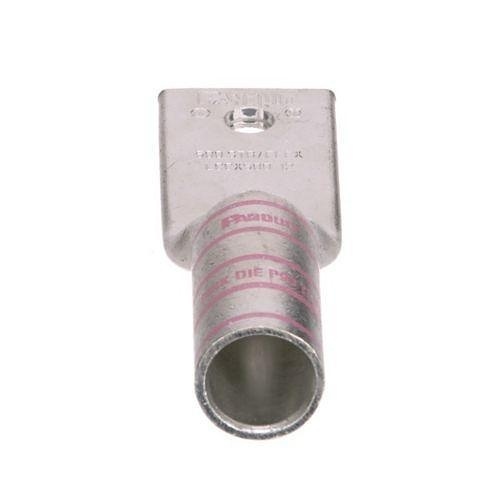

Panduit LCCX500-12-6 Copper Compression Lug, 500 KCMil, 2-Hole
LCCX500-12-6
|P9-CCX500126
Shop All Panduit
Panduit LCCX500-12-6 Copper Compression Lug, 500 KCMil, 2-Hole
LCCX500-12-6 | P9-CCX500126
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The LCCX500-12-6 Tin-Plated Copper Compression Connector Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified.
Main Features
- Tin-plated copper compression connector lug
- Two-hole design
- Long barrel for maximum crimps and wire pull-out strength
- Color-coded barrels marked with Panduit and competitor die index numbers
- Generously beveled wire entry to prevent bent back strands
- UL Listed and CSA Certified
General Information
Name: Panduit LCCX500-12-6 Copper Compression Lug, 500 KCMil, 2-Hole
Category: Panduit, Batteries & Power Supplies, Power Accessories & Parts
UPC Code: 74983437931
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-CCX500126 Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number LCCX500-12-6 Product Name Terminal Connector Product Type Terminal Connector
Length 6.66"
Limited Warranty 1-Year
Environmentally Friendly Yes Features Corrosion Resistant
