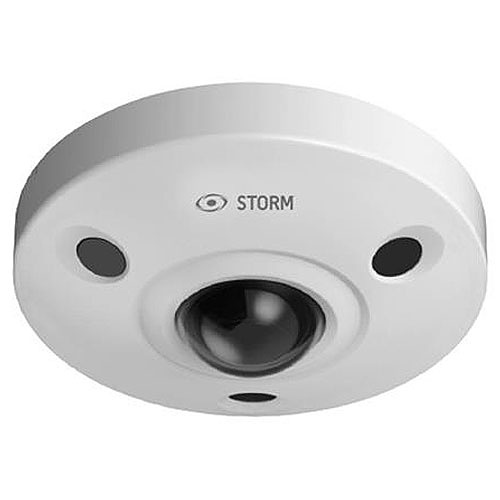

Inaxsys INSDO12IRHEM 12MP 360-Degree Hemispheric Camera, Focal Length 1.98mm, IP67
INSDO12IRHEM
|IN-INSDO12IR
Shop All Inaxsys Security Systems
Inaxsys INSDO12IRHEM 12MP 360-Degree Hemispheric Camera, Focal Length 1.98mm, IP67
INSDO12IRHEM | IN-INSDO12IR
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The ICT INSDO12IRHEM is a high-resolution 12MP 360-degree hemispheric camera designed for advanced surveillance. Featuring a 1/1.7'' STARVIS CMOS sensor, it delivers sharp images with a 1.98mm focal length lens. This camera supports H.265 and H.264 triple-stream encoding, capturing up to 25 FPS at 12MP resolution (4000 x 3000). Equipped with versatile de-wrapping modes and enhanced day/night capabilities, it ensures clear visuals with 3DNR, AWB, AGC, and BLC. The IR LEDs reach up to 10 meters for effective night monitoring. Additional intelligent features include smart detection, micro SD memory support, and robust IP67 and IK10 ratings with PoE functionality. Perfect for those seeking reliable, high-quality panoramic security solutions. Upgrade your surveillance system today with this feature-packed camera!
Main Features
- 1/1.7'' 12MP Progressive Scan STARVIS CMOS
- H.265 and H.264 Triple-Stream Encoding
- Max 25FPS at 12MP (4000 x 3000)
- Multiple De-Wrap Mode
- Day/Night (ICR), 3DNR, AWB, AGC, BLC
- Maximum Length of IR LEDs - 10m
- Smart Detection
- Intelligent Function
- Micro SD Memory, IP67, IK10, PoE
General Information
Name: Inaxsys INSDO12IRHEM 12MP 360-Degree Hemispheric Camera, Focal Length 1.98mm, IP67
Category: Inaxsys Security Systems, Video Surveillance, IP Cameras, Panoramic Cameras
UPC Code: 685225606604
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number IN-INSDO12IR Brand Name Inaxsys Security Systems Country of Origin CN Manufacturer Part Number INSDO12IRHEM Product Name 12 MP 360-Degree Hemispheric Camera Product Series Storm Product Type Hemispheric Camera
Effective Camera Resolution 12MP Field of View Horizontal, Vertical Lens Type Fixed Maximum Aperture f/2.8 Maximum Frame Rate 30fps Night Vision Yes Night Vision Type Color Wide Dynamic Range Yes
Image Sensor Type CMOS
Ingress Protection Rating IP67
Maximum Video Resolution 4000 x 3000
Maximum Operating Temperature 122°F Minimum Operating Temperature -22°F
Longest Shutter Speed 1/3 Second Shortest Shutter Speed 1/100000 Second
Focal Length 1.98mm Lens Included Yes Maximum Focal Length 1.98mm
Depth 1.88" Durability Dustproof, Impact Resistant, Waterproof
Input Voltage 12V DC
Diameter 5.90"
Impact Protection Rating IK10
