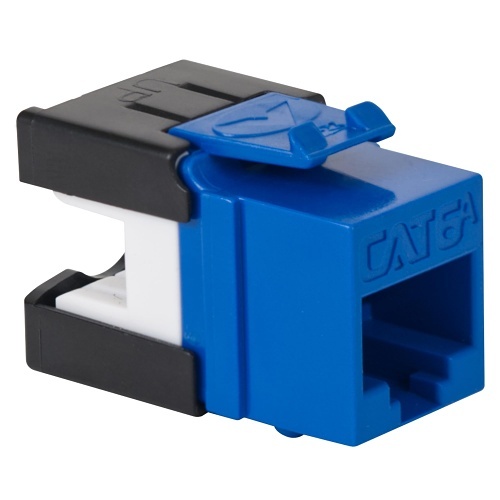

Image of H2-1078GABL
Shop all ICC

ICC IC1078GABL CAT6A Keystone Jack with Slim Profile 180-Degree Punch Down, 10Gbps RJ45 UL Listed PoE++ TAA Compliant for Wall Plate / Patch Panel, Blue

IC1078GABL|H2-1078GABL
Color: Blue
Cable Type: Category 6a
Shop all ICC

ICC IC1078GABL CAT6A Keystone Jack with Slim Profile 180-Degree Punch Down, 10Gbps RJ45 UL Listed PoE++ TAA Compliant for Wall Plate / Patch Panel, Blue

IC1078GABL|H2-1078GABL
Color: Blue
Cable Type: Category 6a

Sign In for Dealer Pricing

Become an ADI Customer
ICC

ICC IC1078GABL CAT6A Keystone Jack with Slim Profile 180-Degree Punch Down, 10Gbps RJ45 UL Listed PoE++ TAA Compliant for Wall Plate / Patch Panel, Blue

IC1078GABL | H2-1078GABL

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The CAT6A 10Gig UTP modular jacks provide transmission performance beyond 500MHz and Alien Crosstalk requirements exceeding the industry standards set by ANSI/TIA-568-C.2 for supporting the operation of 10Gig Ethernet applications (10GBASE-T). It is designed with a shielded termination cap which minimizes additional AXT from neighboring connectors. It also features twisted pair separation posts which minimize the untwisting of pairs to allow for efficient installation and long-term peak performance. The modular jacks are also backward compatible supporting current CAT6, CAT5e, and voice network applications.FeaturesCAT6A rated connectors provide excellent performance for data networks requiring maximum speed and bandwidth.PCB technology provides maximum performance and superior signal quality.Enhanced crosstalk cancellation reduces return loss and improves performance by rejecting noise and unwanted signals.Designed with rear 110 IDC reducing termination time.Includes an integrated TIA-568A/B color wiring diagram.Reduced rear footprint allows for greater connectivity density.Provide more port configurations in a smaller area.Compatible with ICC CAT6A blank patch panels IC107PPU6A.High-density jacks with compatible Decorex style inserts and classic faceplates.Exceeds ANSI/TIA-568-C requirements for permanent performances.UL 1863 compliant.

Main Features

  • PoE++ Rated For High-Power Devices: This CAT6 keystone jack features 50 micro-inch gold-plated high-retention contacts over 100 micro-inches of nickel, providing support for up to 100 watts of Power over Ethernet (PoE++). Ideal for powering devices such as pan-tilt-zoom security cameras, webcams, and other types of networked equipment, these RJ45 (8P8C) connectors are built for 8-position, 8-condu
  • Fast 4-Pair Termination: Built to work with ICC’s JackEasy 4-Pair Termination Tool (SKU ICACSPDTEH), enabling termination of all four pairs in a single squeeze. Features phosphor bronze alloy IDC pins, designed to withstand 100+ re-terminations for reliable and durable performance. Supports over 750 plug-to-jack insertion cycles for extended usability, with compatibility for RJ45 (8P8C) patch cabl
  • TAA Compliant & Section 889 Certified: ICC CAT6A keystone jacks meet U.S. government regulations, including TAA and Section 889. Manufactured in approved countries, UL Listed, RoHS and UL 1863 compliant for safety. ETL Verified to TIA 568.2-D (U.S.) and IEEE 802.3 standards, supporting 10-Gigabit Ethernet (10GBASE-T) and backward compatibility with Fast Ethernet (100BASE-TX) and Gigabit Ethernet (
  • Max. Space Efficiency: The slim body of the jack maximizes space utilization in modular patch panels and work area outlets for high density applications, allowing for greater connectivity and more port configurations within the same space. Includes TIA-568A/B color-coded wiring diagrams conveniently displayed on the IDC for quick reference. Compatible with 8-position, 8-conductor configurations, e
  • Complete Cabling System: Install ICC CAT6A Keystone Jacks with ICC CAT6A Cables, CAT6A Patch Panels, and CAT6A Patch Cables to achieve both Permanent Link and Channel Link specifications for end-to-end network performance. This configuration provides maximum NEXT headroom, exceeding ANSI/TIA-568 Category 6A requirements for enhanced crosstalk cancellation, reduced return loss, and improved network

    • General Information

    Name:ICC IC1078GABL CAT6A Keystone Jack with Slim Profile 180-Degree Punch Down, 10Gbps RJ45 UL Listed PoE++ TAA Compliant for Wall Plate / Patch Panel, Blue
    Category:ICC, Data Comm & Networking, Cable Connectors, Inserts & Adapters
    UPC Code:633758029346
    Country of Origin:Taiwan, Province of China. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
    Installation Instructions
