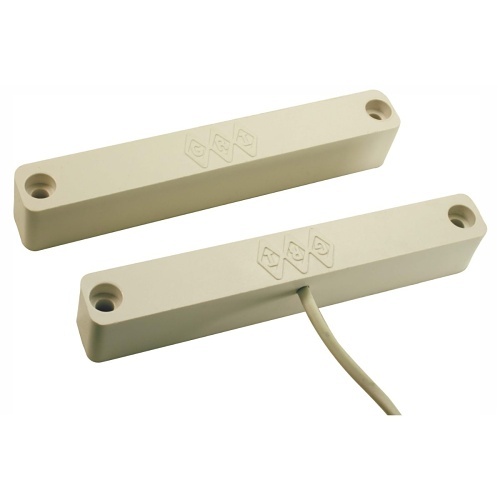

GRI 410PWG-B Industrial Surface Mount Switch Set, 3" Wide Gap, SPST-No, Brown
GRI 410PWG-B Industrial Surface Mount Switch Set, 3" Wide Gap, SPST-No, Brown
GRI 410PWG-B Industrial Surface Mount Switch Set, 3" Wide Gap, SPST-No, Brown
410PWG-B | GI-410PWGB
Please sign in to view pricing and availability and to add to cart.
Product Overview
The GRI series of commercial and industrial switch sets offers the installer two choices. The 400 Series incorporates hidden terminals, inset into the recessed back to provide tamper resistant installations. The 410 Series has the standard terminals located on the top of the switch. Both options give the installer a regular gap of 1 1/2" , while the wide gap version is up to 3 1/4" , which covers the various types of steel door and frame conditions found at every commercial and industrial site. Spacers and mounting hardware are included with the set. The 410P version offers 3 feet of 2 conductor cable. Switches, magnets and mounting brackets are also available separately.
Main Features
General Information
Specifications
ADI Part Number GI-410PWGB Brand Name GRI Manufacturer George Risk Industries Manufacturer Part Number 410PWG-B Product Model 410PWG-B Product Name 410PWG-B Magnetic Contact Product Series 410 Product Type Magnetic Contact
Application/Usage Door Connectivity Technology Wired Contact Form Form A Material Steel Power Consumption 10W Standard Gap 3.25" Termination Style Screw Terminal
Color Brown
Input Current 400mA Input Voltage 160V DC Power Source DC
Contact Type N.O. Installation Type Hybrid Mount Type Surface Mount
Limited Warranty Lifetime Warranty
Additional Information - Spacer and mounting screws included
- Supervisory loops or dummy terminals on request Private labeling on request
- Switches or magnets are available separately
- 410P Has 36" 2 Conductor Vinyl Jacketed Cable
Certifications & Standards UL, UL 10C, ULC Country of Origin US Features End of Line (EOL) Resistor
