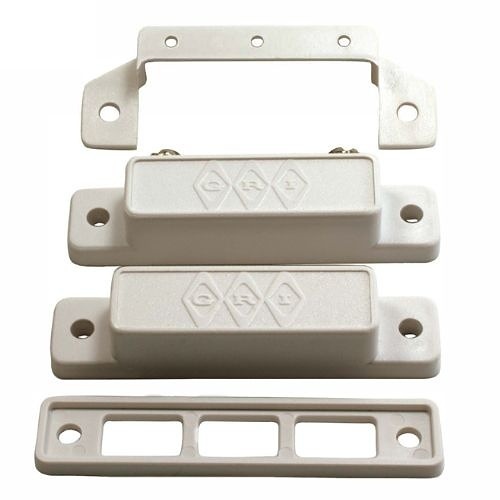

GRI 29AXWG 29 Series Surface Mount Magnetic Reed Switch Set, Extra Wide Gap, 10W, 160VDC, 0.40A, Closed Loop, N/O, and Side Mounted Screw Terminals, White
29AXWG|GI-29AXWGW
Color: White
Standard Gap: 2"
GRI 29AXWG 29 Series Surface Mount Magnetic Reed Switch Set, Extra Wide Gap, 10W, 160VDC, 0.40A, Closed Loop, N/O, and Side Mounted Screw Terminals, White
29AXWG|GI-29AXWGW
Color: White
Standard Gap: 2"
George Risk Industries
GRI 29AXWG 29 Series Surface Mount Magnetic Reed Switch Set, Extra Wide Gap, 10W, 160VDC, 0.40A, Closed Loop, N/O, and Side Mounted Screw Terminals, White
29AXWG | GI-29AXWGW
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
This series offers a standard gap of 1 inch, a wide gap of up to 1 1/2 inches and an extra wide gap of 2 inches and can be installed on a steel surface with a minimum gap penalty. The “P” style is a pre-wired switch with 2 feet of conductor cable. A broad range of mounting brackets are also available.
Main Features
General Information
Name:GRI 29AXWG 29 Series Surface Mount Magnetic Reed Switch Set, Extra Wide Gap, 10W, 160VDC, 0.40A, Closed Loop, N/O, and Side Mounted Screw Terminals, White
Category:George Risk Industries, Intrusion, Alarm Contacts, Magnetic Contacts
UPC Code:697625006861
Country of Origin:United States. Country of origin is subject to change.
Specifications
ADI Part Number GI-29AXWGW Brand Name GRI Manufacturer George Risk Industries Manufacturer Part Number 29AXWG-W Product Model 29AXWG-W Product Name 29AXWG-W Magnetic Contact Product Series 29 Product Type Magnetic Contact
Connectivity Technology Wired Material Steel Standard Gap 2"
Color White
Power Source DC
Contact Type N.O. Installation Type Commercial Mount Type Surface Mount
Limited Warranty Lifetime Warranty
Country of Origin US Features 1" on steel, 24" jacketed cable on PA Series, Concealed terminals on 28 Series, Extra Wide Gap - Up to 2", Extra wide gap up to 2", 1" on steel, Hermetically sealed, Lifetime warranty against workmanship, material and factory defects, Longer leads upon request on PA series, Plated contacts resist sticking or freezing, Screw down flanges, Side mounted screw terminals on 29 series, Side screw terminals on 29 series, Spacers, covers and screws Included, Standard gap up to 1", 5/8" on steel, Surface mount magnetic contacts, This versatile series sets the industry standard for commercial and light industrial applications, UL and ULC approved, Wide gap up to 1 1/2", 3/4" on steel Package Contents - 29AXWG-W Magnetic Contact
- Covers
- Spacers
- Mounting Hardware
