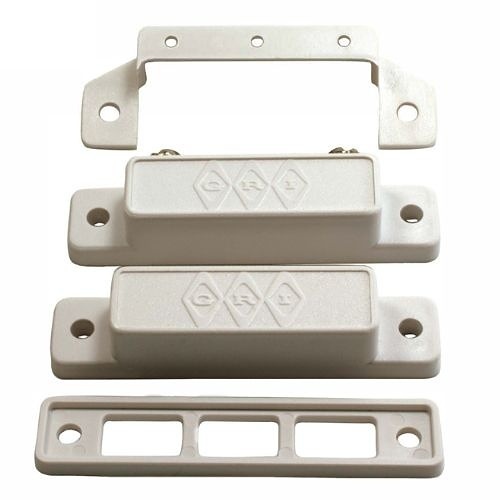

GRI 29AXWG-B 29 Series Surface Mount Magnetic Reed Switch Set, Extra Wide Gap, 10W, 160VDC, 0.40A, Closed Loop, N/O, and Side Mounted Screw Terminals, Brown
29AXWG-B|GI-29AXWGB
Color: Brown
Standard Gap: 2"
GRI 29AXWG-B 29 Series Surface Mount Magnetic Reed Switch Set, Extra Wide Gap, 10W, 160VDC, 0.40A, Closed Loop, N/O, and Side Mounted Screw Terminals, Brown
29AXWG-B|GI-29AXWGB
Color: Brown
Standard Gap: 2"
George Risk Industries
GRI 29AXWG-B 29 Series Surface Mount Magnetic Reed Switch Set, Extra Wide Gap, 10W, 160VDC, 0.40A, Closed Loop, N/O, and Side Mounted Screw Terminals, Brown
29AXWG-B | GI-29AXWGB
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
This series offers a standard gap of 1 inch, a wide gap of up to 1 1/2 inches and an extra wide gap of 2 inches and can be installed on a steel surface with a minimum gap penalty. The “P” style is a pre-wired switch with 2 feet of conductor cable. A broad range of mounting brackets are also available.
Main Features
General Information
Name:GRI 29AXWG-B 29 Series Surface Mount Magnetic Reed Switch Set, Extra Wide Gap, 10W, 160VDC, 0.40A, Closed Loop, N/O, and Side Mounted Screw Terminals, Brown
Category:George Risk Industries, Intrusion, Alarm Contacts, Magnetic Contacts
UPC Code:697625006823
Country of Origin:United States. Country of origin is subject to change.
Specifications
ADI Part Number GI-29AXWGB Brand Name GRI Manufacturer George Risk Industries Manufacturer Part Number 29AXWG-B Product Name 29 Series Surface Mount Magnetic Contact Product Series 29 Product Type Magnetic Contact
Connectivity Technology Wired Contact Form Form A Material Steel Power Consumption 10W Standard Gap 2"
Color Brown
Input Current 400mA Input Voltage 160V DC Power Source DC
Contact Type N.O. Installation Type Commercial Mount Type Surface Mount
Limited Warranty Lifetime Warranty
Certifications & Standards UL, ULC Country of Origin US Features 24" jacketed cable on PA Series, Concealed terminals on 28 Series, Extra wide gap up to 2", 1" on steel, Lifetime warranty against workmanship, material and factory defects, Longer leads upon request on PA series, Side mounted screw terminals on 29 series, Spacers, covers and screws Included, Standard gap up to 1", 5/8" on steel, UL and ULC approved, Wide gap up to 1 1/2", 3/4" on steel
