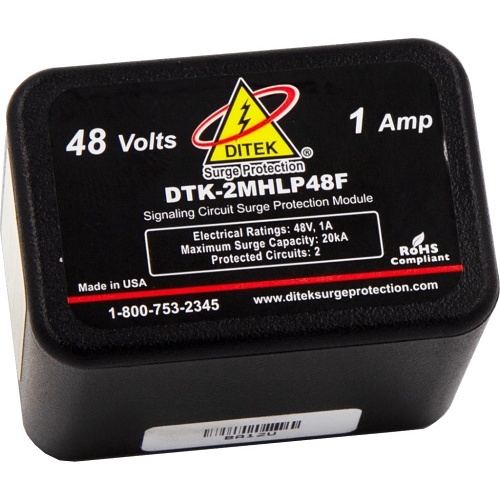

Image of DK-2MHLP48F
Shop all DITEK

DITEK DTK-2MHLP48F Data and Signaling Circuit Surge Protection Module

DTK-2MHLP48F|DK-2MHLP48F
Input Voltage: 48V DC
Shop all DITEK

DITEK DTK-2MHLP48F Data and Signaling Circuit Surge Protection Module

DTK-2MHLP48F|DK-2MHLP48F
Input Voltage: 48V DC

Sign In for Dealer Pricing

Become an ADI Customer
DITEK

DITEK DTK-2MHLP48F Data and Signaling Circuit Surge Protection Module

DTK-2MHLP48F | DK-2MHLP48F

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The DTK-2MHLP48F provides surge protection with exclusive load removal technology for two 48V alarm system loop circuits. With required snap-track bases, protect up to 10 pairs with a common ground.

Main Features

  • Protects two 48V pairs per module
  • Exclusive load removal feature
  • Multi-stage, SAD technology, hybrid design, provides the best possible protection
  • Field replaceable, modular edge card connection design with a single point ground for fast installation, saves time
  • Six voltage levels available to protect all types of voice/data applications
  • Hard-wired multi-base mounting system allows you to protect up to ten pairs with a common ground. See next page for base part numbers
  • Suitable for use on both AC and DC circuits
  • Design with a single point ground for fast
  • Installation, saves time
  • Voice/data applications

    • General Information

    Name:DITEK DTK-2MHLP48F Data and Signaling Circuit Surge Protection Module
    Category:DITEK, Batteries & Power Supplies, Power Strips & Surge Protectors, Surge Protection Modules
    UPC Code:782980519511
    Country of Origin:United States. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
    Installation Instructions
