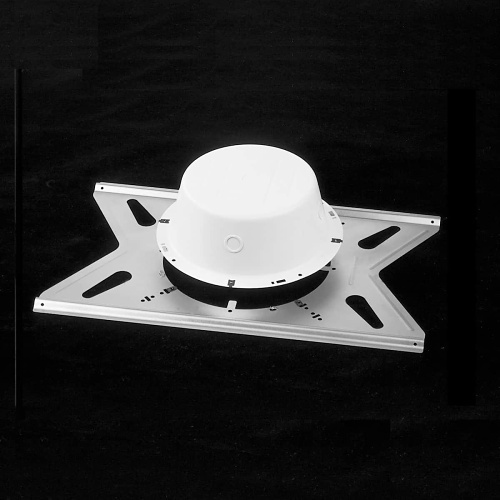

Image of YL-LBS8R1
Shop all Lowell Manufacturing

Lowell LBS8-R1 Tile Bridge for Speaker

LBS8-R1|YL-LBS8R1
Shop all Lowell Manufacturing

Lowell LBS8-R1 Tile Bridge for Speaker

LBS8-R1|YL-LBS8R1

Sign In for Dealer Pricing

Become an ADI Customer

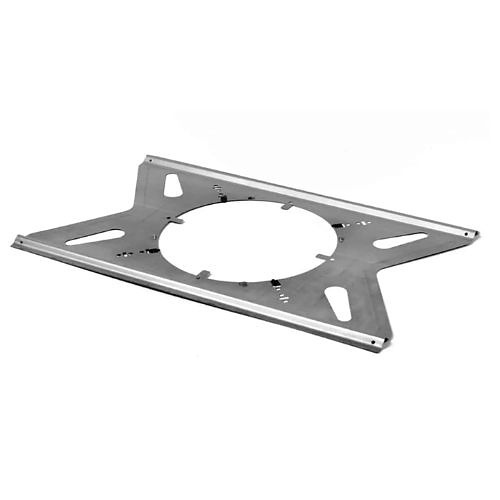

Image of YL-LBS8R1
Lowell Manufacturing

Lowell LBS8-R1 Tile Bridge for Speaker

LBS8-R1 | YL-LBS8R1

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

A tile-bridge distributes the weight of a speaker assembly to the ceiling support structure in a suspended 2x2 or 2x4 tile ceiling, reducing the likelihood of tiles sagging under the weight of the speaker, and helping to maintain the overall aesthetics of the installation. Tile-bridges are often required by local building codes for safety purposes. The LBS8-R1 can be used with or without a backbox depending on local building codes and the style and weight of the speaker assembly.

Main Features

  • Formed construction, lightweight, rigid support
  • 24-gauge galvanized steel
  • 23.75 " x 15.5"
  • 10.75" diameter opening
  • Wire-tie points for seismic anchoring where required by code, multiple attachment points
  • For Driver Size- 8"
  • For Grille Type- Screw-mount or torsion
  • Backbox Requirements- Use with or without backbox

    • General Information

    Name:Lowell LBS8-R1 Tile Bridge for Speaker
    Category:Lowell Manufacturing, Pro AV, Commercial Audio, Pro Accessories & Mounts
    UPC Code:811859032346
    Country of Origin:. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
