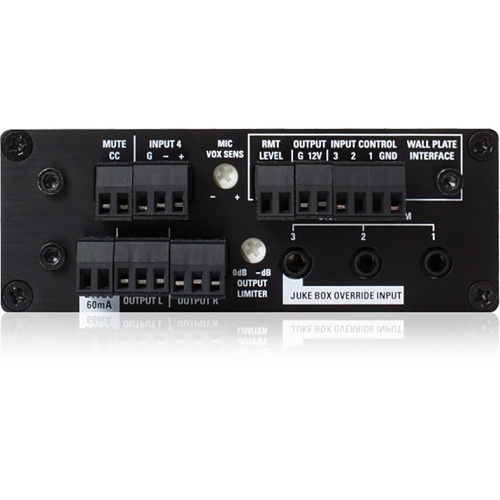

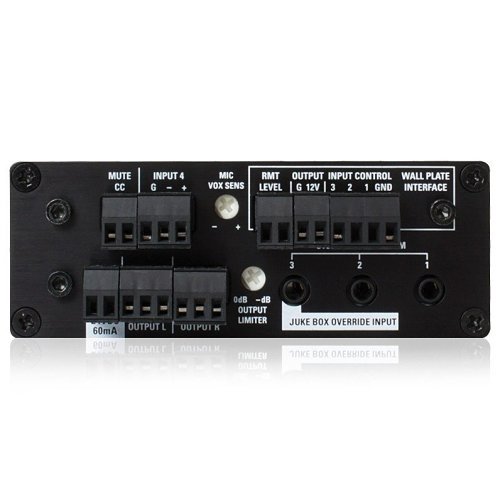

AtlasIED TSD-MIX42RT Mic/Line Mixer with Priority Sense and Remote Control, 24VDC, 60mA
TSD-MIX42RT
|V4-TSDMIX42R
Shop All AtlasIED
AtlasIED TSD-MIX42RT Mic/Line Mixer with Priority Sense and Remote Control, 24VDC, 60mA
TSD-MIX42RT | V4-TSDMIX42R
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Stereo or Mono Configurations
Main Features
- One Balanced Mic/Line Input
- Three Unbalanced Stereo Line Inputs 3.5 mm
- 12 dB octave High Pass Filter at 125Hz Available on the Mic Input
- Priority Paging Via Contact Closure or VOX Trigger on Input 1
- Remote Level Control Feature Allows use of the WPD-VC10K Wall Plate Control
- Power Supply Sold Separately
General Information
Name: AtlasIED TSD-MIX42RT Mic/Line Mixer with Priority Sense and Remote Control, 24VDC, 60mA
Category: AtlasIED, Pro AV, Commercial Audio, Pro Audio Mixers
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number V4-TSDMIX42R Application/Usage Conference Room, Digital Signage, Meeting, Mixer, Studio Brand Name AtlasIED Country of Origin CN Manufacturer AtlasIED Manufacturer Part Number TSD-MIX42RT Product Line Amps/Attenuator Product Model TSD-MIX42RT Product Name 4x2 Mic/Line Mixer with Priority Sense and Remote Control Product Series TSD Product Type Audio Mixer
Maximum Frequency Response 20kHz Minimum Frequency Response 20Hz
Certifications & Standards CE cUL
Microphone Yes Number of Inputs 3 RCA Audio In Yes
Color Black Depth 5.20" Height 1.50" Material Aluminum Weight 6.61lb Width 4.00"
Input Voltage 24V DC Maximum Power Consumption 1.40W
Mount Type Rack Mount
Limited Warranty 3-Year
Environmental Certification RoHS Environmentally Friendly Yes Features Remote Level Control Package Contents - 4x2 Mic/Line Mixer with Priority Sense
- Remote Control
- Velcro
- 2 x Brackets
- Security Covers
- 2 x Cable Retainer
