Eaton Tripp Lite PDU12IEC 1.9-3.8kW Single-Phase 120–240V Basic PDU, 14-Outlets, C20 16A Input, 1U Rack-Mount
PDU12IEC|TC-PDU12IEC
Eaton Tripp Lite PDU12IEC 1.9-3.8kW Single-Phase 120–240V Basic PDU, 14-Outlets, C20 16A Input, 1U Rack-Mount
PDU12IEC|TC-PDU12IEC
Eaton Tripp Lite
Eaton Tripp Lite PDU12IEC 1.9-3.8kW Single-Phase 120–240V Basic PDU, 14-Outlets, C20 16A Input, 1U Rack-Mount
PDU12IEC | TC-PDU12IEC
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

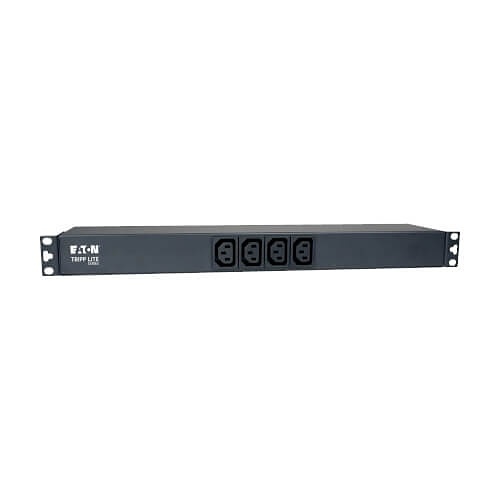

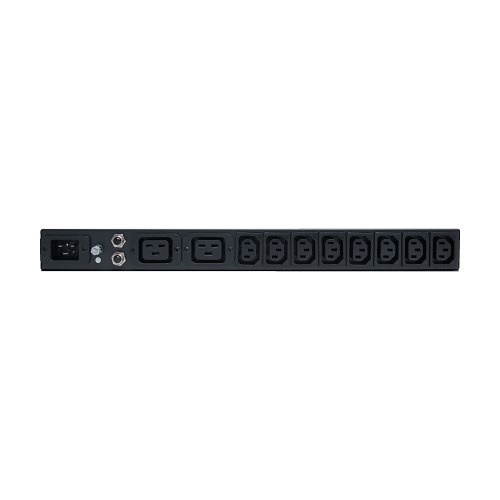

The PDU12IEC 1.9/3.8kW Single-Phase 120–240V Basic PDU is the perfect no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Perfectly suited for high-density IT environments, the PDU12IEC features a single load bank with 14 total outlets—eight rear C13, two rear C19 and four front C13. The C20 inlet accepts a variety of user-provided power cords that connect to your facility's compatible AC power source, generator or protected UPS to distribute power to connected equipment. The switchless design prevents an accidental shutdown, which could lead to costly downtime. Dual 16A circuit breakers protect connected equipment from dangerous overloads. The reversible all-metal housing mounts in 1U of space in EIA-standard 19" racks, as well as on a wall or workbench or under a counter. With a compatible rack and a PDUSIDEBRKT accessory (sold separately), you can adapt the PDU12IEC for vertical 0U rack-mounting.
Main Features
General Information
Name:Eaton Tripp Lite PDU12IEC 1.9-3.8kW Single-Phase 120–240V Basic PDU, 14-Outlets, C20 16A Input, 1U Rack-Mount
Category:Eaton Tripp Lite, Batteries & Power Supplies, Power Management, Power Distribution Units, ADI Pro Rewards
UPC Code:037332116253
Country of Origin:China. Country of origin is subject to change.
Specifications
ADI Part Number TC-PDU12IEC Brand Name Eaton Tripp Lite Manufacturer Part Number PDU12IEC
Output Voltage 120-240V Phase Single Phase Receptacle Detail 12 x IEC 320 C20, 19 x C19 Receptacle Type IEC 320 C20
Depth 4.25" Form Factor 0U, 1U Height 1.73" Rack Height 0U, 1U Width 17.52"
Input Current 16A Input Voltage 120V, 125V, 127V, 200V, 208V, 220V, 230V, 240V
Limited Warranty 5-Year
Country of Origin CN Environmental Certification CE, CSA, RoHS, UL Environmentally Friendly Yes Package Contents Mounting Hardware, Owner's manual, PDU12IEC 1.9/3.8kW Single-Phase 120–240V Basic PDU
