Eaton Tripp Lite N484-3M8-LC12 40/100Gb Breakout Cassette, 40Gb to 4 x 10Gb, 100Gb to 4 x 25Gb, (x3) 8-Fiber MTP/MPO to (x12) LC Duplex, Type-B Polarity

N484-3M8-LC12 | TC-N4848LC12

Veuillez vous connecter pour voir les tarifs, consulter la disponibilité des produits et ajouter des articles à votre panier.

Aperçu
Spécifications
Documents

Aperçu

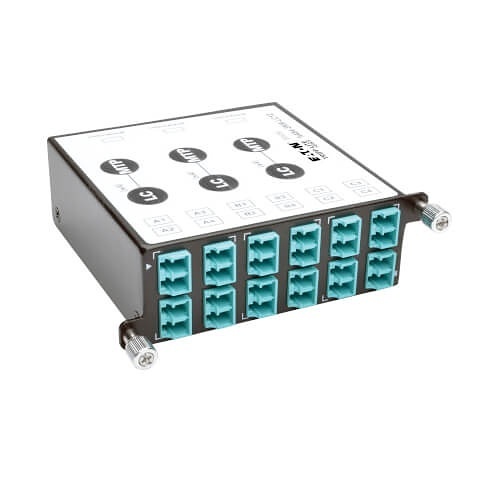

The N484-3M8-LC12 40/100Gb to 10/25Gb Breakout Cassette works in tandem with N484-01U or N484-00U chassis to connect 12 LC duplex fiber cables with three 8-fiber MTP/MPO connections in high-density network applications. It's compatible with recommended cabling, including the N820-, N821-, N844-, N845- and N858 Series. Its 8-fiber MTP ports are Polarity B, optimized for parallel optics and Base-8 connectivity. The cassette's modular design installs easily in the N484-01U and N484-00U chassis with no tools required. Just insert the cassette into the chassis, and screw in its retention clips to secure it. Plug LC Ethernet cables, such as N820-01M-T cables, into the cassette using the cable's convenient push/pull tabs. Up to four N484-3M8-LC12 cassettes fit in the N484-01U 1U enclosure panel, and one cassette fits in the N484-00U 0U sleeve. Dust tabs protect unused ports from potential damage. The N484-3M8-LC12 complies with IEEE 802.3ae (10 GbE) and ANSI T11.2 (Fibre Channel) requirements. Supports 40GbE internally using OM4 fiber optic cable. Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 to SFP+ 10GBASE-SR and QSFP28 100GBASE-SR4 to SFP28 25GBASE-SR connections. Ideal for QSFP fabric switches that use eight out of 12 available MTP fibers for four-lane parallel optics to 40GB, allowing all 12 LC duplex cassette ports to be used. Maximum insertion loss of 0.35 dB falls well under the IEEE 802.3ae maximum channel loss specification of <25 dB. This cassette also supports devices of varying speeds, including 10Gb, 25Gb, 40Gb and 100Gb network equipment.

Principales caractéristiques

  • Compatible with Tripp Lite N484-01U/00U chassis

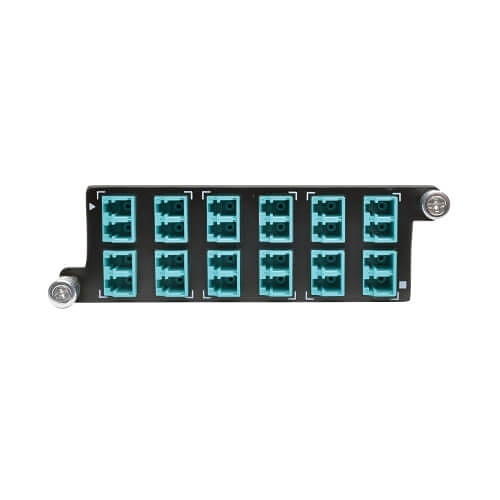

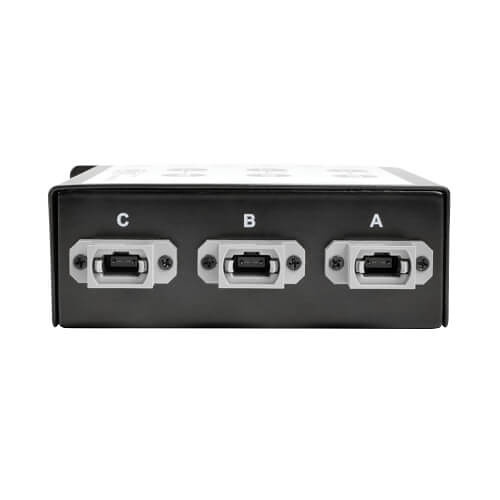

  • Connects 12 LC duplex cables with 3 MTP/MPO connections
  • Supports 40Gb to 4x10Gb and 100Gb to 4x25Gb breakout
  • Polarity B for parallel optics and Base-8 connectivity
  • Easy tool-free installation with modular design

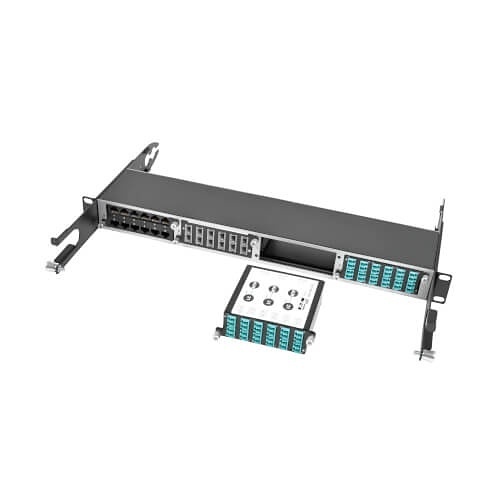

  • Fits up to 4 cassettes in 1U enclosure, 1 in 0U sleeve
  • Complies with IEEE 802.3ae and ANSI T11.2 standards
  • Supports 40GbE with OM4 fiber optic cable
  • Ideal for QSFP fabric switches with 4-lane parallel optics
  • Maximum insertion loss of 0.35 dB

    • Renseignements généraux

    Nom:Eaton Tripp Lite N484-3M8-LC12 40/100Gb Breakout Cassette, 40Gb to 4 x 10Gb, 100Gb to 4 x 25Gb, (x3) 8-Fiber MTP/MPO to (x12) LC Duplex, Type-B Polarity
    Category:Eaton Tripp Lite, Data Comm & Networking, Patch Panels, Fiber Optic Cassettes, ADI Pro Rewards
    UPC Code:
    Country of Origin:China. Country of origin is subject to change.
