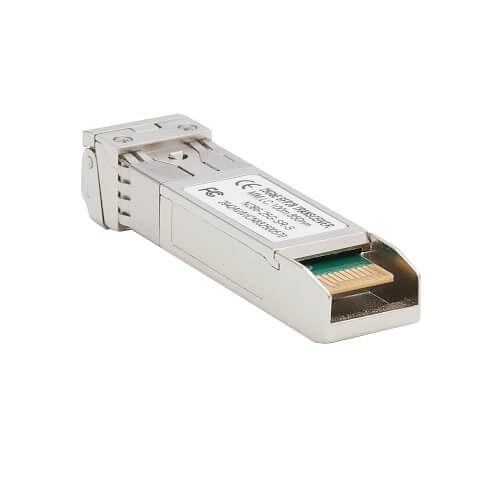

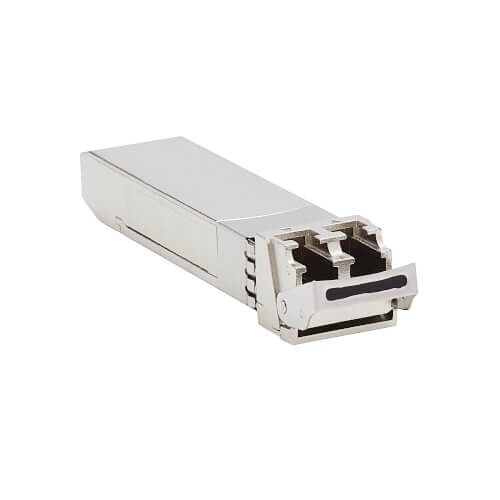

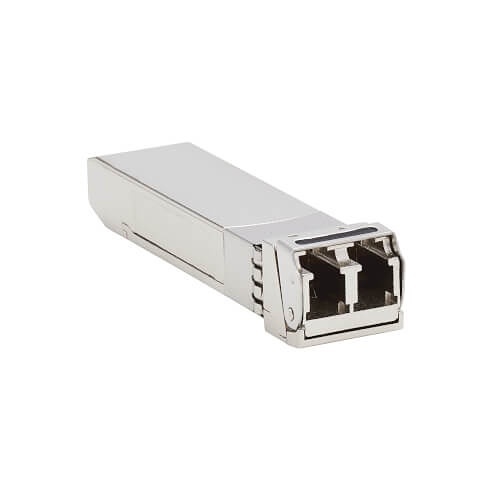

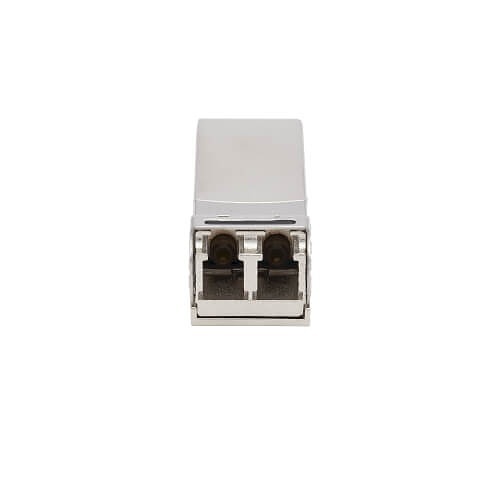

Eaton Tripp Lite N286-25G-SR-S Cisco-Compatible SFP28 Transceiver, 25GBase-SR, LC Duplex MMF, 328', 850 nm, Silver
N286-25G-SR-S
|TC-N28625GSR
Shop All Eaton Tripp Lite
Eaton Tripp Lite N286-25G-SR-S Cisco-Compatible SFP28 Transceiver, 25GBase-SR, LC Duplex MMF, 328', 850 nm, Silver
N286-25G-SR-S | TC-N28625GSR
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
SFP28 Transceiver Designed for Connection to Your Cisco Network Switch or ServerThis SFP28 transceiver allows you to connect a multimode fiber optic cable to a 25 Gbps network router, server or switch. It transmits data up to 328.08-ft. (100 m) using an 850 nm wavelength. The zinc housing protects against electromagnetic interference (EMI) and excessive power dissipation.Functionally Equivalent to Cisco SFP-25G-SR-S Transceiver ModuleThe MSA-compliant N286-25G-SR-S functions just like the equivalent Cisco SFP-25G-SR-S transceiver module and is manufactured to meet or exceed Cisco specifications. You can use this transceiver with any compatible Cisco router, server or switch and receive the same performance as the SFP-25G-SR-S.Hot-Swappable for Installation Without Network InterruptionThis input/output device is fully hot-swappable, so you can install it without a potentially costly 25 Gbps network shutdown or device reboot. Just plug the SFP28 end of the transceiver into your Cisco network device. The other end has an LC duplex connector to link with multimode fiber optic cable (sold separately). A push/pull tab connector is easily accessible in high-density data center applications and makes the plug-and-play transceiver easy to install and remove with one hand.
Main Features
- Compatible with Cisco network devices
- Supports 25Gbps data transmission
- Transmits up to 328.08' (100m)
- Operates at 850 nm wavelength
- Zinc Housing for EMI protection
- MSA-Compliant and Cisco equivalent
- Hot-swappable for easy installation
- LC duplex Connector for fiber optic cable
- Push/pull tab for easy handling
General Information
Name: Eaton Tripp Lite N286-25G-SR-S Cisco-Compatible SFP28 Transceiver, 25GBase-SR, LC Duplex MMF, 328', 850 nm, Silver
Category: Eaton Tripp Lite, Data Comm & Networking, Network Adapters, SFP Modules
UPC Code: 37332248466
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number TC-N28625GSR Application/Usage Commercial Brand Name Eaton Tripp Lite Country of Origin CN Manufacturer Part Number N286-25G-SR-S
Fiber Optic Mode Multimode
Depth 2.23" Height 0.33" Width 0.53"
Plug/Connector Type LC - Female, SFP28 Male
Limited Warranty 3-Year
Environmental Certification CE, RoHS Environmentally Friendly Yes Package Contents N286-25G-SR-S Cisco-Compatible SFP-25G-SR-S SFP28 Transceiver
