Eaton Tripp Lite B150-1A1-HDMI Display Port to HDMI Over CAT5/6 Active Extender Kit, Pigtail Transmitter/Receiver for Video/Audio, 150' (45 m), TAA

B150-1A1-HDMI|TC-B15011HDM
Shop all Eaton Tripp Lite

Eaton Tripp Lite B150-1A1-HDMI Display Port to HDMI Over CAT5/6 Active Extender Kit, Pigtail Transmitter/Receiver for Video/Audio, 150' (45 m), TAA

B150-1A1-HDMI|TC-B15011HDM

Sign In for Dealer Pricing

Become an ADI Customer
Image of TC-B15011HDM
Eaton Tripp Lite

Eaton Tripp Lite B150-1A1-HDMI Display Port to HDMI Over CAT5/6 Active Extender Kit, Pigtail Transmitter/Receiver for Video/Audio, 150' (45 m), TAA

B150-1A1-HDMI | TC-B15011HDM

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

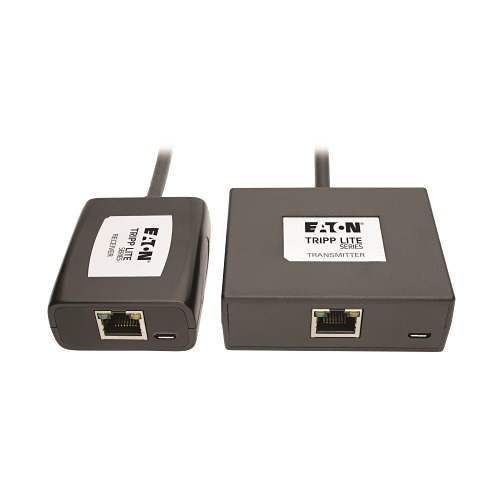

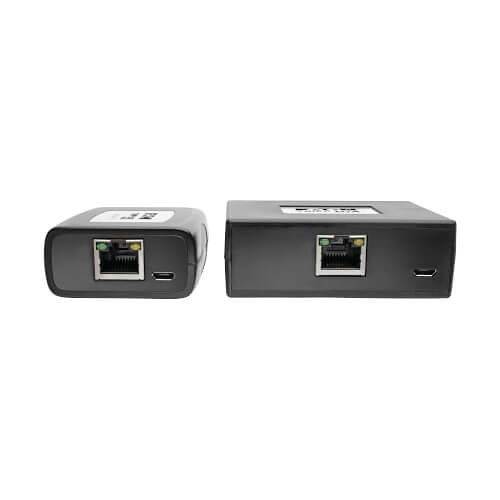

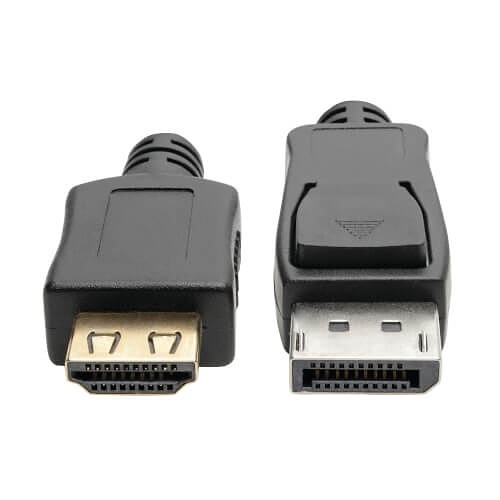

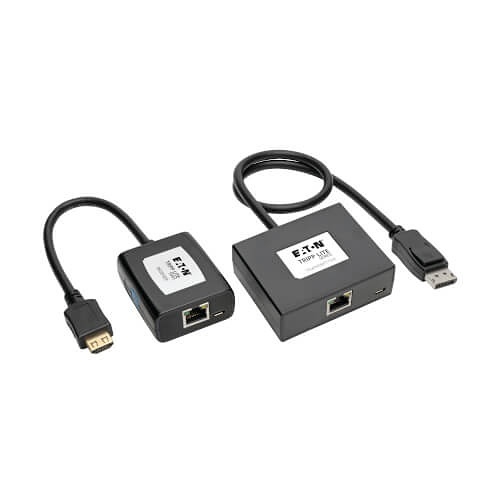

The B150-1A1-HDMI DisplayPort to HDMI over CAT5/CAT6 Active Extender Kit includes a transmitter unit and a receiver unit that work in tandem to convert a DisplayPort audio/video signal to HDMI and then extend it to a projector, monitor or television up to 150' (45.7m) away. The kit is ideal for digital signs, trade shows, presentations, classrooms, churches, retail settings and other applications where the video source is located farther than convention cables allow.One CAT5e/6 cable connects the transmitter and receiver (for best results, use 24AWG solid-wire CAT5e/6 cable, such as the N202-Series). A built-in DisplayPort cable connects the transmitter to the source, while a built-in HDMI cable connects the receiver to the display. The built-in HDMI cable features a latching connector that helps prevent accidental disconnection. Included USB Micro-B cables connect the transmitter to a USB port on the DisplayPort computer or a USB wall charger (such as U280-002-W12), and connect the receiver to a USB port on the HDMI display or a USB wall charger. No external power supplies are needed. The B150-1A1-HDMI can extend a high-definition 1080i (60 Hz) signal up to 150' and a 1080p (60 Hz) signal up to 125' (38.1m). In addition to crystal-clear video, including 24-Bit True Color (8-Bit per channel), the kit delivers full, rich stereo. Green and orange LEDs on both units indicate when they are receiving power from the USB Micro-B cables and sharing a signal. Easy to set up with no software or drivers to install. Works with all operating systems.

Main Features

  • Converts DisplayPort to HDMI, extends up to 150'
  • Ideal for digital signs, trade shows, and presentations
  • Supports 1080i and 1080p high-definition signals
  • Connects with one CAT5e/6 Cable for easy setup
  • Supports 24-Bit True Color and stereo audio
  • HDCP 1.3 Compliant for secure connections
  • Plug-and-play, no software required
  • Compatible with all operating systems
  • Includes USB Micro-B cables for Power
  • TAA-Compliant for GSA Schedule purchases

    • General Information

    Name:Eaton Tripp Lite B150-1A1-HDMI Display Port to HDMI Over CAT5/6 Active Extender Kit, Pigtail Transmitter/Receiver for Video/Audio, 150' (45 m), TAA
    Category:Eaton Tripp Lite, Pro AV, Commercial Video Signal Distribution, Pro HDMI Extenders
    UPC Code:037332190116
    Country of Origin:Taiwan, Province of China. Country of origin is subject to change.
