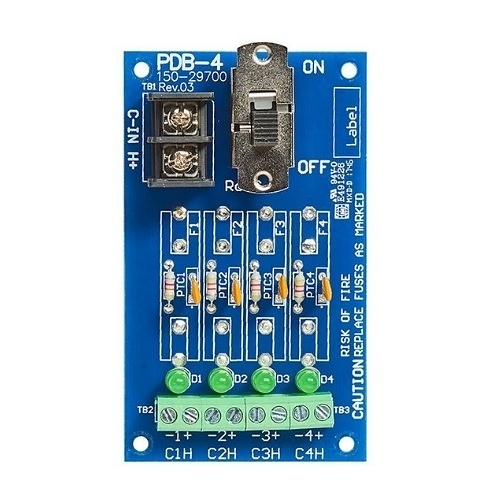

Image of SN-PDB4F2
Shop all Securitron by ASSA ABLOY

Securitron PDB-4F2 Power Distribution Board with (4) Glass Fuse

PDB-4F2|SN-PDB4F2
Shop all Securitron by ASSA ABLOY

Securitron PDB-4F2 Power Distribution Board with (4) Glass Fuse

PDB-4F2|SN-PDB4F2

Sign In for Dealer Pricing

Become an ADI Customer
Securitron by ASSA ABLOY

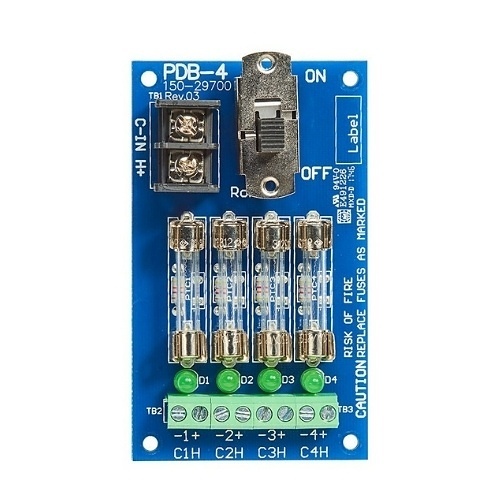

Securitron PDB-4F2 Power Distribution Board with (4) Glass Fuse

PDB-4F2 | SN-PDB4F2

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

Converts a single 9-28VDCInput to 4 or 8 protected class 2 rated output for PTC protected models. Main Power Green/Red LED Indicates AC, DC or Reversed DC Input on PDB-8. Each output has a green status LED indicator. Current Draw is 6ma max per LED. Main Fuse / Power Pull is standard ATO Automotive size on PDB-8 Rated 20A.

Main Features

  • Converts a single DC Input into 4 or 8 Class 2 rated outputs for “C” denoted models
  • Class 1 wiring is required for “F” denoted models
  • 9-28 VDC Operation
  • Reverse polarity protected
  • Available with glass fuses or PTC protection
  • Output LED's indicate condition
  • Form C Contacts Indicates Trigger Status
  • UL Listed Sub Assembly for Access Control and Burglar Alarm Systems

    • General Information

    Name:Securitron PDB-4F2 Power Distribution Board with (4) Glass Fuse
    Category:Securitron by ASSA ABLOY, Batteries & Power Supplies, Power Supplies & Boards, Power Supply Boards
    UPC Code:784607041313
    Country of Origin:United States. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
