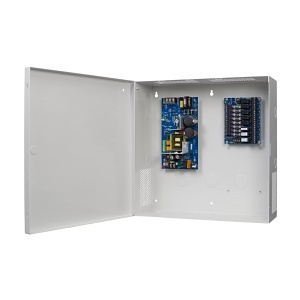

Securitron AQD6-4F1R1 AQD6 Series Switching Power Supply, (4) Fused 1A Ouput

AQD6-4F1R1 | SN-AQD64F1R1

Please sign in to view pricing, availability, and to add to cart.

Overview

Specifications

Documents

Product Overview

The Securitron AQD6 Series of switching power supplies are dual voltage, UL listed, supervised units. These units are field selectable with a dedicated battery charging circuit. They provide 6 Amp at 12VDC or 24VDC continuous, with up to 16 independently controlled power limited outputs.

Main Features

All combinations of AQ power supplies and distribution boards are UL listed

Dual voltage 12 or 24 VDC field selectable continuous output

Up to 91% efficiency which results in decreased operating costs and lengthens the lifespan of electronics

Tolerates brownout or overvoltage input ± 15% of nominal voltage

Thermal shutdown protection with auto restart

Circuit breaker protects against overcurrent and reverse battery faults

Dedicated battery charging circuit prevents overvoltage on locking devices

Low battery cutoff at 9V at 12V or 18V at 24V

Available with a single relay fire trigger or individually triggered relayed outputs

General Information

Name: Securitron AQD6-4F1R1 AQD6 Series Switching Power Supply, (4) Fused 1A Ouput

Category: Securitron by ASSA ABLOY, Batteries & Power Supplies, Power Supplies & Boards, Access Power Controllers

UPC Code: 784607052081

Country of Origin: China. Country of origin is subject to change.

Specifications

: ADI Part Number SN-AQD64F1R1 Brand Name Securitron by ASSA ABLOY Manufacturer Part Number AQD6-4F1R1 Product Series AQD6

: Depth 3.25" Height 14" Width 14"

: Amperage 4A

: Environmental Certification CE, REACH, RoHS, UL Environmentally Friendly Yes

Documents and Resources

Download All Documents

Product Data Sheet

User Manual

Manufacturer Brochure

Certification / Declaration
