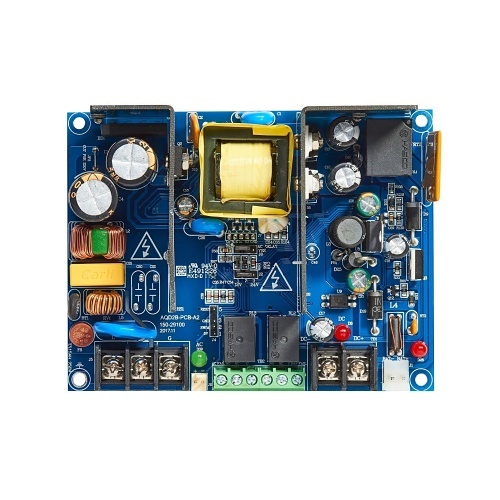

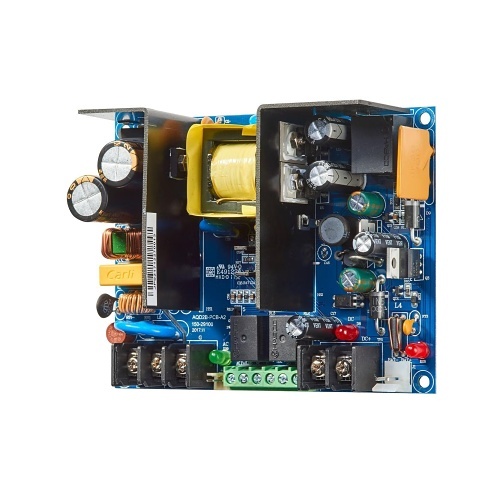

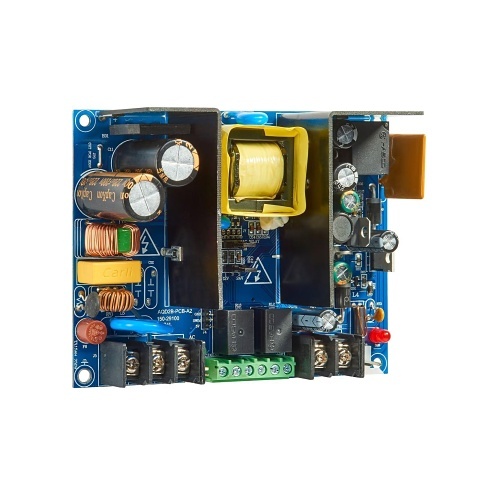

Image of SN-AQD28C8R1
Securitron by ASSA ABLOY

Securitron AQD2-8C8R1 SRS Switching Power Supply Series Power

AQD2-8C8R1 | SN-AQD28C8R1

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The Securitron AQD2 Series of switching power supplies are dual voltage, UL listed, supervised units. These units are field selectable with a dedicated battery charging circuit. They provide 2 Amp at 12VDC or 24VDC continuous, with up to 16 independently controlled power limited outputs.

Main Features

  • All combinations of AQ power supplies and distribution boards are UL listed
  • Dual voltage 12 or 24 VDC field selectable continuous output
  • Up to 85% efficiency which results in decreased operating costs and lengthens the lifespan of electronics
  • Tolerates brownout or overvoltage input ± 15% of nominal voltage
  • Thermal shutdown protection with auto restart
  • Circuit breaker protects against overcurrent and reverse battery faults
  • Dedicated battery charging circuit prevents overvoltage on locking devices
  • Low battery cutoff at 9V at 12V and 18V at 24V
  • Available with a single relay fire trigger or individually triggered relayed outputs

    • General Information

    Name:Securitron AQD2-8C8R1 SRS Switching Power Supply Series Power
    Category:Securitron by ASSA ABLOY, Batteries & Power Supplies, Power Supplies & Boards, Power Supplies
    UPC Code:0784607046967
    Country of Origin:United States. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
    User Manual
    Manufacturer Brochure
