STI SS2239HV-EN Stopper Station Button, with Universal Stopper Cover, Flush Mount, Turn-to-Reset Illuminated,' HVAC SHUT-DOWN' Label, Yellow
SS2239HV-EN
|SF-SS2239HVE
Shop All Safety Technology International
STI SS2239HV-EN Stopper Station Button, with Universal Stopper Cover, Flush Mount, Turn-to-Reset Illuminated,' HVAC SHUT-DOWN' Label, Yellow
SS2239HV-EN | SF-SS2239HVE
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

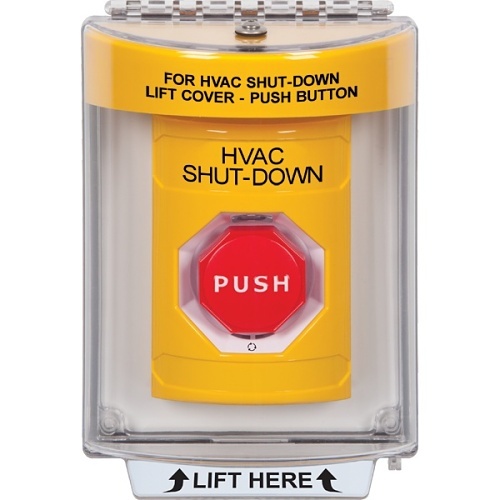

This Stopper® Station, momentary push button switch includes a flush mounted Universal Stopper protective cover. The push button is housed in a curved shell with HVAC SHUT-DOWN messaging. Interchangeable or replaceable N.O. or N.C., SPST gold-plated contact blocks rated for 6 amps @ 600 VAC or 1 amp @ 250 VDC. Part of the Stopper® Station series, which is a multipurpose push button series that covers a wide range of applications both indoors and outdoors. This product's unique, curved design helps protect against accidental activation.
Specifications
ADI Part Number SF-SS2239HVE Manufacturer Part Number SS2239HV-EN Product Line Stopper Station Product Model SS2239HV-EN Product Series SS2
Material Polycarbonate
Maximum Operating Temperature 250°F Minimum Operating Temperature -40°F
Depth 1.62" Height 4.86" Width 3.22"
Input Voltage 125V AC, 250V AC
Print/Message HVAC SHUTDOWN
Limited Warranty 3-Year
ADA Compliant Yes
