STI SS2405LD-EN No Cover Momentary Illuminated Stopper Station with LOCKDOWN Label, Blue
SS2405LD-EN
|SF-S2405LDEN
Shop All Safety Technology International
STI SS2405LD-EN No Cover Momentary Illuminated Stopper Station with LOCKDOWN Label, Blue
SS2405LD-EN | SF-S2405LDEN
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

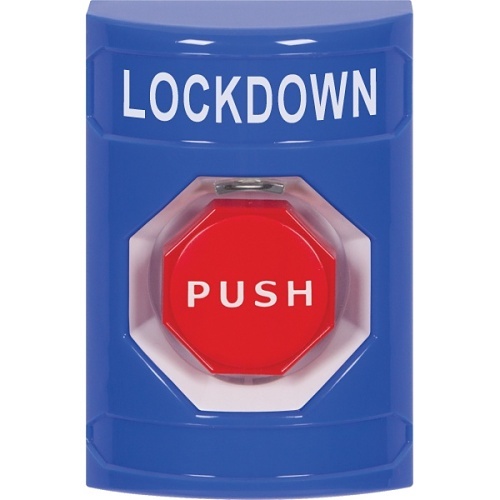

This Stopper® Station, momentary push button switch is housed in a curved shell with LOCKDOWN messaging. Above the button is a multicolor 12-24 VAC/VDC LED illumination status bar (LED color options: red, green, and white). The push button includes two (2) Form “C” contacts, DPDT, rated 10 amps @ 125/250 VAC, 6 amps @ 30 VDC. Part of the Stopper® Station series, which is a multipurpose push button series that covers a wide range of applications both indoors and outdoors. This product's unique, curved design helps protect against accidental activation.
Specifications
ADI Part Number SF-S2405LDEN Manufacturer Part Number SS2405LD-EN Product Line Stopper Station Product Series SS2
Material Polycarbonate
Maximum Operating Temperature 250°F Minimum Operating Temperature -40°F
Depth 1.62" Height 4.86" Width 3.22"
Print/Message LOCKDOWN
ADA Compliant Yes
