STI SS24A3EX-EN Key-to-Activate Stopper Station with Horn, Flush / Surface Mount, Indoor, EMERGENCY EXIT Label in English, Blue
SS24A3EX-EN
|SF-24A3EXEN
Shop All Safety Technology International
STI SS24A3EX-EN Key-to-Activate Stopper Station with Horn, Flush / Surface Mount, Indoor, EMERGENCY EXIT Label in English, Blue
SS24A3EX-EN | SF-24A3EXEN
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

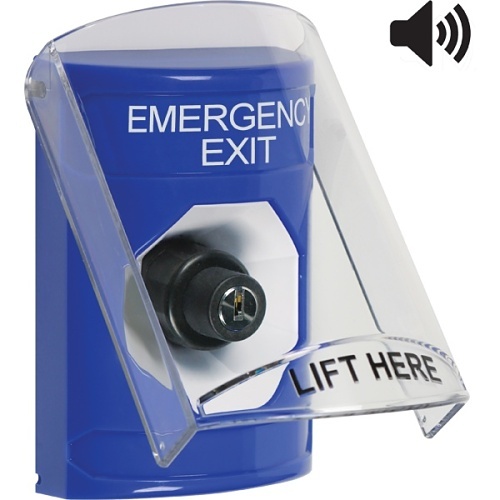

This Stopper® Station, key-to-activate push button switch, with shield with sound, is housed in a curved, blue shell with EMERGENCY EXIT messaging. Interchangeable or replaceable N.O. or N.C., SPST gold-plated contact blocks rated for 3 amps @ 600 VAC or 1 amp @ 250 VDC. Standard switch includes one N.O. and one N.C. contact. Holds up to three individual isolated contacts. Part of the Stopper® Station series, which is a multipurpose push button series that covers a wide range of applications both indoors and outdoors. This product's unique, curved design helps protect against accidental activation.
Specifications
ADI Part Number SF-24A3EXEN Manufacturer Part Number SS24A3EX-EN Product Line Stopper Station Product Model SS24A3EX-EN Product Series SS2
Material Polycarbonate
Maximum Operating Temperature 250°F Minimum Operating Temperature -40°F
Depth 1.62" Height 4.86" Width 3.22"
Input Voltage 125V AC, 250V AC
Print/Message Emergency Exit
Limited Warranty 3-Year
ADA Compliant Yes
