Image of SF-2488PXEN
Shop all Safety Technology International

STI SS2488PX-EN Stopper Station with Universal Cover and Horn, Indoor / Outdoor, Surface Mount, Pneumatic Illuminated, 'PUSH TO EXIT' English Label, Blue

SS2488PX-EN|SF-2488PXEN
Shop all Safety Technology International

STI SS2488PX-EN Stopper Station with Universal Cover and Horn, Indoor / Outdoor, Surface Mount, Pneumatic Illuminated, 'PUSH TO EXIT' English Label, Blue

SS2488PX-EN|SF-2488PXEN

Sign In for Dealer Pricing

Become an ADI Customer
Safety Technology International

STI SS2488PX-EN Stopper Station with Universal Cover and Horn, Indoor / Outdoor, Surface Mount, Pneumatic Illuminated, 'PUSH TO EXIT' English Label, Blue

SS2488PX-EN | SF-2488PXEN

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

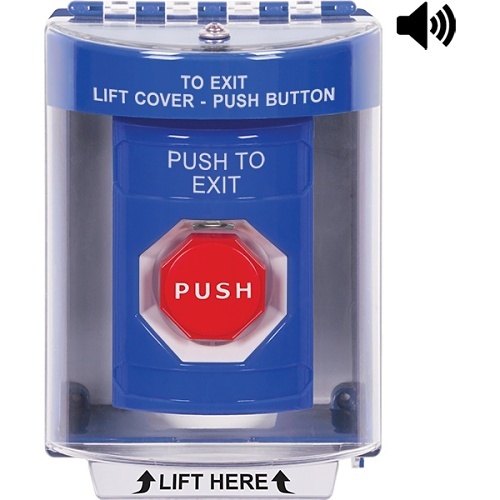

This Stopper® Station, pneumatic push button includes a surface mounted Universal Stopper protective cover with an internal horn. The push button is housed in a curved shell with PUSH TO EXIT messaging. Switch rating 10 amps resistive at 120-240 VAC and has a timer range: 2 - 60 seconds (± 15%) with repeat accuracy ± 10%. Indoor use only. Not recommended for outdoor/water applications, temperature range of button 15° to 120°F (-9° to +49°C). Pneumatic adjustable timer opens or closes a circuit and has a timed delay before reset. No electricity to operate. Multicolor illumination bar 12-24VAC/VDC LED (LED color options: red, green, and white). Ideal for security applications. 1 Form Z, 1 N.O. and 1 N.C. contact. Part of the Stopper® Station series, which is a multipurpose push button series that covers a wide range of applications both indoors and outdoors. This product's unique, curved design helps protect against accidental activation.

Main Features

  • Pneumatic push button
  • Raised PUSH TO EXIT label
  • Switch rating 10 amps resistive at 120-240 VAC and has a timer range: 2 - 60 seconds (± 15%) with repeat accuracy ±
  • Indoor use only. Not recommended for outdoor/water applications, temperature range of button 15° to 120°F (-9° to +49°C)
  • Multicolor illumination bar 12-24VAC/VDC LED (LED color options: red, green, and white)
  • Ideal for security applications
  • 1 Form Z, 1 N.O. and 1 N.C. contact
  • Protective cover with horn helps protect button from damage and accidental activation
  • ADA Compliant

    • General Information

    Name:STI SS2488PX-EN Stopper Station with Universal Cover and Horn, Indoor / Outdoor, Surface Mount, Pneumatic Illuminated, 'PUSH TO EXIT' English Label, Blue
    Category:Safety Technology International, Access Control, Egress Devices & Alarms, Door Release Buttons
    UPC Code:662950502524
    Country of Origin:United States. Country of origin is subject to change.
