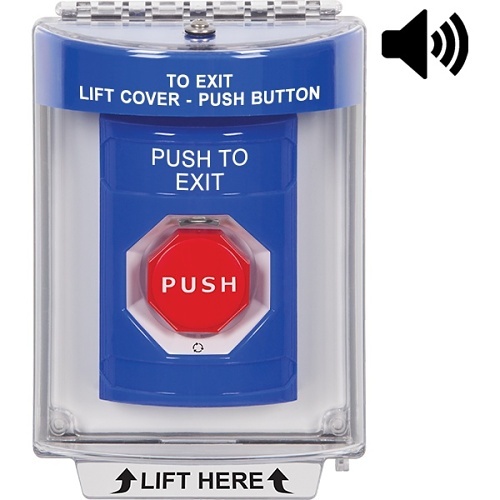

Image of SF-2449PXEN
Shop all Safety Technology International

STI SS2449PX-EN Stopper Station Button, with Universal Stopper Cover, Horn, Flush Mount, Turn-to-Reset Illuminated,' PUSH TO EXIT' Label, Blue

SS2449PX-EN|SF-2449PXEN
Shop all Safety Technology International

STI SS2449PX-EN Stopper Station Button, with Universal Stopper Cover, Horn, Flush Mount, Turn-to-Reset Illuminated,' PUSH TO EXIT' Label, Blue

SS2449PX-EN|SF-2449PXEN

Sign In for Dealer Pricing

Become an ADI Customer
Safety Technology International

STI SS2449PX-EN Stopper Station Button, with Universal Stopper Cover, Horn, Flush Mount, Turn-to-Reset Illuminated,' PUSH TO EXIT' Label, Blue

SS2449PX-EN | SF-2449PXEN

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

This Stopper® Station, turn-to-reset switch includes a flush mounted Universal Stopper protective cover with an internal horn. The push button switch is housed in a curved shell with PUSH TO EXIT messaging. Above the button is a multicolor 12-24 VAC/VDC LED illumination status bar (LED color options: red, green, and white). For indoor use, two (2) Form “C” contacts, DPDT, rated 10 amps @ 125/250 VAC, 6 amps @ 30 VDC are included. Part of the Stopper® Station series, which is a multipurpose push button series that covers a wide range of applications both indoors and outdoors. This product's unique, curved design helps protect against accidental activation.

Main Features

  • Turn-to-Reset push button
  • Raised PUSH TO EXIT label
  • Two (2) Form “C” contacts, DPDT, rated 10 amps @ 125/250 VAC, 6 amps @ 30 VDC
  • Multicolor illumination bar 12-24VAC/VDC LED (LED color options: red, green, and white)
  • Protective cover with horn helps protect button from damage and accidental activation
  • UL/cUL Listed
  • ADA Compliant
  • Momentary models used with LT1UL Latching Timer Module are Listed for access control

    • General Information

    Name:STI SS2449PX-EN Stopper Station Button, with Universal Stopper Cover, Horn, Flush Mount, Turn-to-Reset Illuminated,' PUSH TO EXIT' Label, Blue
    Category:Safety Technology International, Access Control, Egress Devices & Alarms, Emergency & Lockdown Buttons
    UPC Code:662950530138
    Country of Origin:United States. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
    User Manual
