STI SS2349EM-EN White ILUM TRN to Reset Wall Mount, Stainless Steel
SS2349EM-EN
|SF-2349EMEN
Shop All Safety Technology International
STI SS2349EM-EN White ILUM TRN to Reset Wall Mount, Stainless Steel
SS2349EM-EN | SF-2349EMEN
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

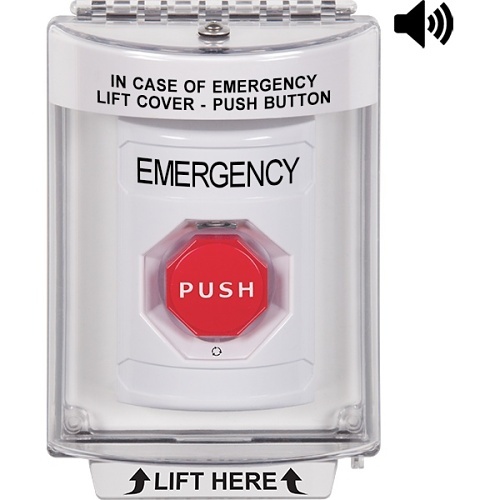

This Stopper® Station, turn-to-reset switch includes a flush mounted Universal Stopper protective cover with an internal horn. The push button switch is housed in a curved shell with EMERGENCY messaging. Above the button is a multicolor 12-24 VAC/VDC LED illumination status bar (LED color options: red, green, and white). The push button includes two (2) Form “C” contacts, DPDT, rated 10 amps @ 125/250 VAC, 6 amps @ 30 VDC. Part of the Stopper® Station series, which is a multipurpose push button series that covers a wide range of applications both indoors and outdoors. This product's unique, curved design helps protect against accidental activation.
Specifications
ADI Part Number SF-2349EMEN Manufacturer Part Number SS2349EM-EN Product Line Stopper Station Product Series SS2
Material Polycarbonate
Maximum Operating Temperature 250°F Minimum Operating Temperature -40°F
Depth 1.62" Height 4.86" Width 3.22"
Input Voltage 125V AC, 250V AC
Print/Message EMERGENCY
Limited Warranty 3-Year
ADA Compliant Yes
