STI SS2305PX-EN Stopper Station Button, No Cover, Momentary Illuminated Bar, PUSH TO EXIT Label, White
SS2305PX-EN|SF-2305PXEN
STI SS2305PX-EN Stopper Station Button, No Cover, Momentary Illuminated Bar, PUSH TO EXIT Label, White
SS2305PX-EN|SF-2305PXEN
Safety Technology International
STI SS2305PX-EN Stopper Station Button, No Cover, Momentary Illuminated Bar, PUSH TO EXIT Label, White
SS2305PX-EN | SF-2305PXEN
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

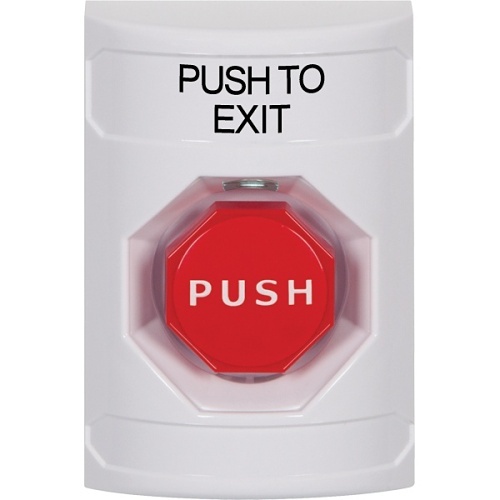

This Stopper® Station, momentary push button switch is housed in a curved shell with PUSH TO EXIT messaging. Above the button is a multicolor 12-24 VAC/VDC LED illumination status bar (LED color options: red, green, and white). The push button includes two (2) Form “C” contacts, DPDT, rated 10 amps @ 125/250 VAC, 6 amps @ 30 VDC. Part of the Stopper® Station series, which is a multipurpose push button series that covers a wide range of applications both indoors and outdoors. This product's unique, curved design helps protect against accidental activation.
Main Features
General Information
Name:STI SS2305PX-EN Stopper Station Button, No Cover, Momentary Illuminated Bar, PUSH TO EXIT Label, White
Category:Safety Technology International, Access Control, Egress Devices & Alarms, Emergency & Lockdown Buttons
UPC Code:662950501596
Country of Origin:United States. Country of origin is subject to change.
Specifications
ADI Part Number SF-2305PXEN Manufacturer Part Number SS2305PX-EN Product Line Stopper Station Product Series SS2
Material Polycarbonate
Maximum Operating Temperature 250°F Minimum Operating Temperature -40°F
Input Voltage 125V AC, 250V AC
Print/Message PUSH TO EXIT
Limited Warranty 3-Year
ADA Compliant Yes
