STI SS2305LD-EN Stopper Station, No Cover, Momentary Illuminated Bar, 'LOCKDOWN' English Label, White
SS2305LD-EN
|SF-2305LDEN
Shop All Safety Technology International
STI SS2305LD-EN Stopper Station, No Cover, Momentary Illuminated Bar, 'LOCKDOWN' English Label, White
SS2305LD-EN | SF-2305LDEN
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

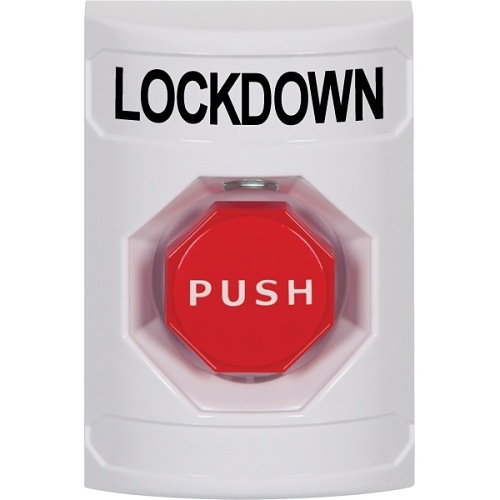

This Stopper® Station, momentary push button switch is housed in a curved shell with LOCKDOWN messaging. Above the button is a multicolor 12-24 VAC/VDC LED illumination status bar (LED color options: red, green, and white). The push button includes two (2) Form “C” contacts, DPDT, rated 10 amps @ 125/250 VAC, 6 amps @ 30 VDC. Part of the Stopper® Station series, which is a multipurpose push button series that covers a wide range of applications both indoors and outdoors. This product's unique, curved design helps protect against accidental activation.
Main Features
- Momentary push button activation
- LED illuminates green, red or white
- Raised LOCKDOWN label
- Two (2) Form “C” contacts rated 10 amp @125/250 VAC, 1/2 HP 30 VDC, 6A
- UL/cUL Listed
- ADA Compliant
General Information
Name: STI SS2305LD-EN Stopper Station, No Cover, Momentary Illuminated Bar, 'LOCKDOWN' English Label, White
Category: Safety Technology International, Access Control, Egress Devices & Alarms, Emergency & Lockdown Buttons
UPC Code: 662950509509
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number SF-2305LDEN Brand Name Safety Technology International Cover Yes Manufacturer Part Number SS2305LD-EN Product Line Stopper Station Product Series SS2
Maximum Operating Temperature 250.00°F Minimum Operating Temperature -40.0°F
Depth 1.62" Height 4.86" Material Polycarbonate Width 3.22"
Input Voltage 125V AC, 250V AC
Print/Message LOCKDOWN
Limited Warranty 3-Year
ADA Compliant Yes
