STI SS22A9PO-EN Stopper Station with Shield and Sound, Turn-to-Reset Illuminated, 'EMERGENCY POWER OFF' English Label, Yellow
SS22A9PO-EN
|SF-22A9POEN
Shop All Safety Technology International
STI SS22A9PO-EN Stopper Station with Shield and Sound, Turn-to-Reset Illuminated, 'EMERGENCY POWER OFF' English Label, Yellow
SS22A9PO-EN | SF-22A9POEN
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

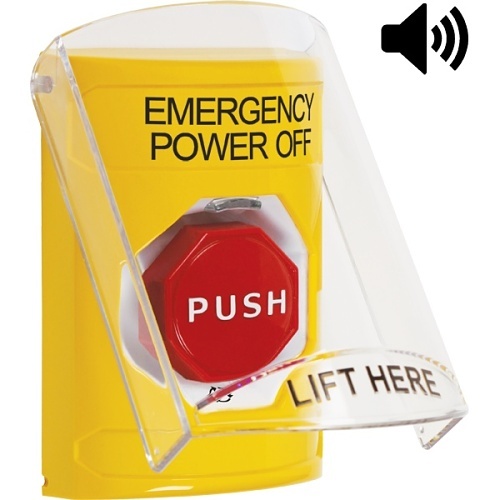

This Stopper® Station, turn-to-reset switch, with shield with sound, is housed in a curved shell with EMERGENCY POWER OFF messaging. Above the button is a multicolor 12-24 VAC/VDC LED illumination status bar (LED color options: red, green, and white). The push button includes two (2) Form “C” contacts, DPDT, rated 10 amps @ 125/250 VAC, 6 amps @ 30 VDC. Part of the Stopper® Station series, which is a multipurpose push button series that covers a wide range of applications both indoors and outdoors. This product's unique, curved design helps protect against accidental activation.
Specifications
ADI Part Number SF-22A9POEN Manufacturer Part Number SS22A9PO-EN Product Line Stopper Station Product Model SS22A9PO-EN
Material Polycarbonate
Maximum Operating Temperature 250°F Minimum Operating Temperature -40°F
Depth 1.62" Height 4.86" Width 3.22"
Input Voltage 125V AC, 250V AC
Print/Message EMERGENCY POWER OFF
Limited Warranty 3-Year
ADA Compliant Yes
