STI SS22A5LD-EN Stopper Station with Shield and Sound, Momentary Illuminated (Bar), 'LOCKDOWN' English Label, Yellow
SS22A5LD-EN|SF-22A5LDEN
STI SS22A5LD-EN Stopper Station with Shield and Sound, Momentary Illuminated (Bar), 'LOCKDOWN' English Label, Yellow
SS22A5LD-EN|SF-22A5LDEN
Safety Technology International
STI SS22A5LD-EN Stopper Station with Shield and Sound, Momentary Illuminated (Bar), 'LOCKDOWN' English Label, Yellow
SS22A5LD-EN | SF-22A5LDEN
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

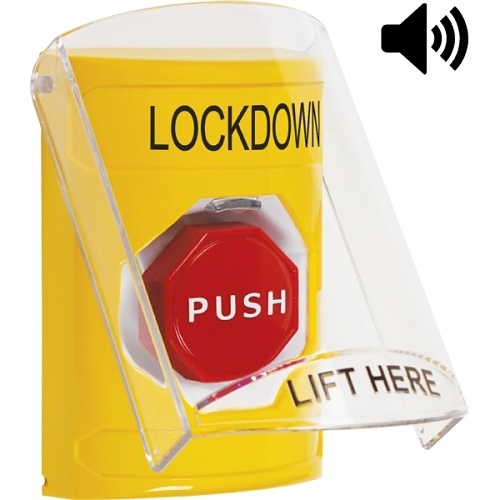

This Stopper® Station, momentary switch, with shield with sound, is housed in a curved shell with LOCKDOWN messaging. Above the button is a multicolor 12-24 VAC/VDC LED illumination status bar (LED color options: red, green, and white). The push button includes two (2) Form “C” contacts, DPDT, rated 10 amps @ 125/250 VAC, 6 amps @ 30 VDC. Part of the Stopper® Station series, which is a multipurpose push button series that covers a wide range of applications both indoors and outdoors. This product's unique, curved design helps protect against accidental activation.
Main Features
General Information
Name:STI SS22A5LD-EN Stopper Station with Shield and Sound, Momentary Illuminated (Bar), 'LOCKDOWN' English Label, Yellow
Category:Safety Technology International, Access Control, Egress Devices & Alarms, Emergency & Lockdown Buttons
UPC Code:662950513360
Country of Origin:United States. Country of origin is subject to change.
Specifications
ADI Part Number SF-22A5LDEN Manufacturer Part Number SS22A5LD-EN Product Line Stopper Station Product Model SS22A5LD-EN Product Series SS2
Material Polycarbonate
Depth 1.62" Height 4.86" Width 3.22"
Limited Warranty 3-Year
