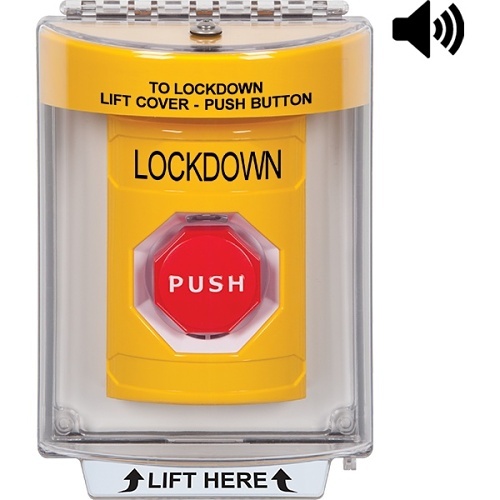

STI SS2245LD-EN Stopper Station Push Button with Universal Stopper Cover, Horn, Flush Mount, Momentary Illuminated (Bar), 'LOCKDOWN' Label, Yellow
SS2245LD-EN
|SF-2245LDEN
Acheter Safety Technology International
STI SS2245LD-EN Stopper Station Push Button with Universal Stopper Cover, Horn, Flush Mount, Momentary Illuminated (Bar), 'LOCKDOWN' Label, Yellow
SS2245LD-EN | SF-2245LDEN
Veuillez vous connecter pour voir les tarifs, consulter la disponibilité des produits et ajouter des articles à votre panier.
Aperçu
Spécifications
Documents
Aperçu
These ADA Compliant, multipurpose push button switches cover a wide range of applications both indoors and outdoors. They’re called Stopper Stations. They incorporate a unique, patented design that helps dramatically to stop accidental activation. A number of standard models are available or we can create custom units to meet your needs exactly. You have your choice of any of six universal shell colors, several button styles, standard or custom wording and language.
Principales caractéristiques
- Momentary push button activation
- Raised LOCKDOWN label
- Two (2) Form “C” contacts, DPDT, rated 10 amps @ 125/250 VAC, 6 amps @ 30 VDC
- Multicolor illumination bar 12-24VAC/VDC LED (LED color options: red, green, and white)
- Protective cover helps protect button from damage and accidental activation
- UL/cUL Listed
- ADA Compliant
Renseignements généraux
Name: STI SS2245LD-EN Stopper Station Push Button with Universal Stopper Cover, Horn, Flush Mount, Momentary Illuminated (Bar), 'LOCKDOWN' Label, Yellow
Category: Safety Technology International, Access Control, Egress Devices & Alarms, Emergency & Lockdown Buttons
UPC Code: 662950529767
Country of Origin: United States. Country of origin is subject to change.
Spécifications
ADI Numéro du produit SF-2245LDEN Capot Yes Code fabricant SS2245LD-EN Gamme Stopper Station Marque Safety Technology International Modèle de produit SS2245LD-EN
Temperature Maximale d'Opération 250.00°F Temperature Minimale d'Opération -40.0°F
Hauteur 4.86" Largeur 3.22" Matériau Polycarbonate Profondeur 1.62"
Tension d'entrée 125V AC, 250V AC
Imprimé/Message LOCKDOWN
Garantie Limitée 3-Year
Conforme ADA Yes
