Image of SF-21A8EXEN
Acheter Safety Technology International

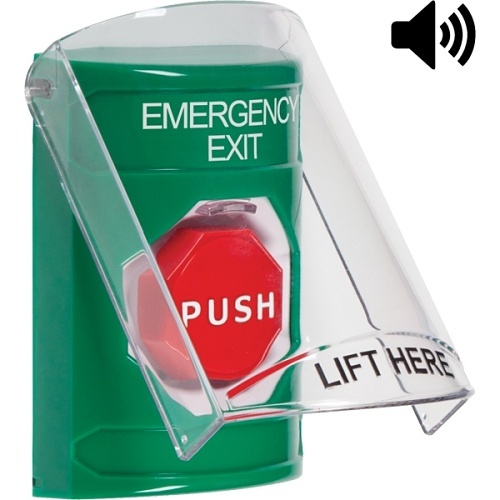

STI SS21A8EX-EN Green Indoor Only Flush or Surface w/ Horn Pneumatic (Illuminated) Stopper Station with EMERGENCY EXIT Label

SS21A8EX-EN|SF-21A8EXEN
Acheter Safety Technology International

STI SS21A8EX-EN Green Indoor Only Flush or Surface w/ Horn Pneumatic (Illuminated) Stopper Station with EMERGENCY EXIT Label

SS21A8EX-EN|SF-21A8EXEN

Se connecter prix revendeur

Devenir client ADI
Safety Technology International

STI SS21A8EX-EN Green Indoor Only Flush or Surface w/ Horn Pneumatic (Illuminated) Stopper Station with EMERGENCY EXIT Label

SS21A8EX-EN | SF-21A8EXEN

Veuillez vous connecter pour voir les tarifs, consulter la disponibilité des produits et ajouter des articles à votre panier.

Aperçu
Spécifications
Documents

Aperçu

Easy-to-use push button with cover allows urgent reaction during an emergency. This ADA Compliant, multipurpose push button switch with EMERGENCY EXIT label and cover with horn protects a wide range of applications both indoors and outdoors. The button incorporates a unique, patented design that helps dramatically to stop accidental activation. Housing is molded of tough polycarbonate that takes knocks in stride, and complies with FDA regulations for food contact applications. Pneumatic adjustable timer opens or closes a circuit and has a timed delay before reset. No electricty to operate. When cover is lifted to access button, a 65/85 dB warning horn sounds. Immediate attention is drawn to the area before the push button is falsely activated.Switch rating 10 amps @ 240 VAC resistive and has a timer range: 2 - 60 seconds (± 15%). Indoor use only. Not recommended for outdoor/water applications, temperature range of button 15° to 120°F (-9° to +49°C). Timer life of over 1,000,000 operations. Ideal for security applications. 1 Form Z, 1 N.O. and 1 N.C. contact. ADA Compliant, UL/cUL Listed.

Principales caractéristiques

  • Pneumatic push button
  • Raised EMERGENCY EXIT label
  • Switch rating 10 amps resistive at 120-240 VAC and has a timer range: 2 - 60 seconds (± 15%) with repeat accuracy ± 10%
  • Indoor use only. Not recommended for outdoor/water applications, temperature range of button 15° to 120°F (-9° to +49°C)
  • Pneumatic adjustable timer opens or closes a circuit and has a timed delay before reset. No electricity to operate
  • Multicolor illumination bar 12-24VAC/VDC LED (LED color options: red, green, and white)
  • Ideal for security applications
  • 1 Form Z, 1 N.O. and 1 N.C. contact
  • Includes protective shield cover with horn
  • ADA Compliant, UL recognized component UL508

    • Renseignements généraux

    Nom:STI SS21A8EX-EN Green Indoor Only Flush or Surface w/ Horn Pneumatic (Illuminated) Stopper Station with EMERGENCY EXIT Label
    Category:Safety Technology International, Access Control, Egress Devices & Alarms, Door Release Buttons
    UPC Code:662950501886
    Country of Origin:United States. Country of origin is subject to change.

    Spécifications

    Documents et ressources sur les produits

    Fiche de produit
    Manuel de l`utilisateur
    Ressources supplémentaires
