STI SS21A7PX-EN Stopper Station Button with Shield and Sound, Weather Resistant Momentary, PUSH TO EXIT Label, Green
SS21A7PX-EN|SF-21A7PXEN
STI SS21A7PX-EN Stopper Station Button with Shield and Sound, Weather Resistant Momentary, PUSH TO EXIT Label, Green
SS21A7PX-EN|SF-21A7PXEN
Safety Technology International
STI SS21A7PX-EN Stopper Station Button with Shield and Sound, Weather Resistant Momentary, PUSH TO EXIT Label, Green
SS21A7PX-EN | SF-21A7PXEN
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

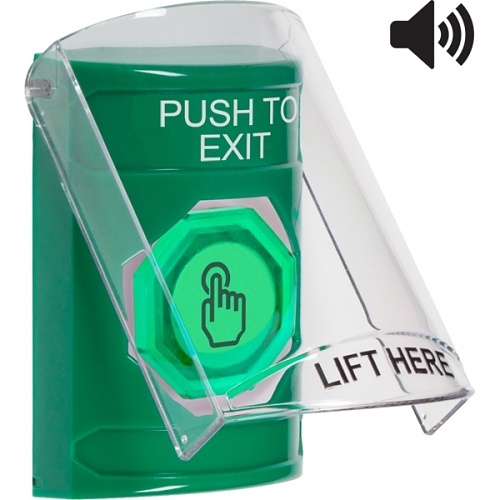

This Stopper® Station, weather resistant momentary switch includes shield with sound. The push button is housed in a curved shell with PUSH TO EXIT messaging. Two (2) Form “C” contacts, DPDT, rated 10 amps @ 125/250 VAC, 6 amps @ 30 VDC. Operating range -31°F to 150°F (-35°C to 66°C). 12-24VAC/VDC LED. Weather resistant, suitable for indoor or outdoor use. Part of the Stopper® Station series, which is a multipurpose push button series that covers a wide range of applications both indoors and outdoors. This product's unique, curved design helps protect against accidental activation.
Main Features
General Information
Name:STI SS21A7PX-EN Stopper Station Button with Shield and Sound, Weather Resistant Momentary, PUSH TO EXIT Label, Green
Category:Safety Technology International, Access Control, Egress Devices & Alarms, Emergency & Lockdown Buttons
UPC Code:662950524892
Country of Origin:United States. Country of origin is subject to change.
Specifications
ADI Part Number SF-21A7PXEN Manufacturer Part Number SS21A7PX-EN Product Line Stopper Station Product Series SS2
Material Polycarbonate
Maximum Operating Temperature 250°F Minimum Operating Temperature -40°F
Depth 1.62" Height 4.86" Width 3.22"
Input Voltage 125V AC, 250V AC
Print/Message PUSH TO EXIT
Limited Warranty 3-Year
ADA Compliant Yes
