STI SS2127PX-EN Indoor Flush/Surface Weather Resistant Momentary Stopper Station with PUSH TO EXIT Label, Green
SS2127PX-EN
|SF-2127PXEN
Shop All Safety Technology International
STI SS2127PX-EN Indoor Flush/Surface Weather Resistant Momentary Stopper Station with PUSH TO EXIT Label, Green
SS2127PX-EN | SF-2127PXEN
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

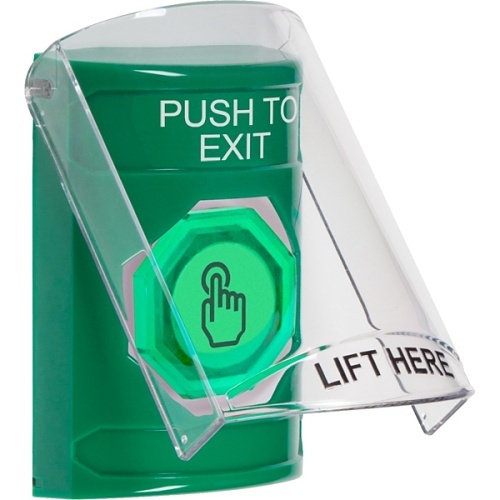

This Stopper® Station, weather resistant momentary switch, with shield, is housed in a green shell with PUSH TO EXIT messaging. Two (2) Form “C” contacts, DPDT, rated 10 amps @ 125/250 VAC, 6 amps @ 30 VDC. Operating range -31°F to 150°F (-35°C to 66°C). 12-24VAC/VDC LED. Weather resistant, suitable for indoor or outdoor use. Part of the Stopper® Station series, which is a multipurpose push button series that covers a wide range of applications both indoors and outdoors. This product's unique, curved design helps protect against accidental activation.
Main Features
- Weather resistant momentary button
- Raised PUSH TO EXIT label
- Two (2) Form “C” contacts, DPDT, rated 10 amps @ 125/250 VAC, 6 amps @ 30 VDC
- Operating range -31°F to 150°F (-35°C to 66°C)
- 12-24VAC/VDC LED
- Weather resistant, suitable for indoor or outdoor use
- UL/cUL Listed, ADA Compliant
General Information
Name: STI SS2127PX-EN Indoor Flush/Surface Weather Resistant Momentary Stopper Station with PUSH TO EXIT Label, Green
Category: Safety Technology International, Access Control, Egress Devices & Alarms, Door Release Buttons
UPC Code: 662950522270
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number SF-2127PXEN Brand Name Safety Technology International Manufacturer Part Number SS2127PX-EN Product Line Stopper Station Product Series SS2
Maximum Operating Temperature 250.00°F Minimum Operating Temperature -40.0°F
Material Polycarbonate
Input Voltage 125V AC, 250V AC
Print/Message Push To Exit
Limited Warranty 3-Year
ADA Compliant Yes
