Product Overview

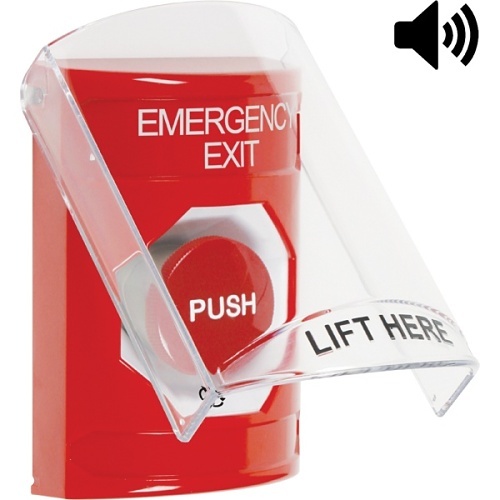

This Stopper® Station, turn-to-reset push button switch, with shield with sound, is housed in a curved shell with EMERGENCY EXIT messaging. Interchangeable or replaceable N.O. or N.C., SPST gold-plated contact blocks rated for 3 amps @ 600 VAC or 1 amp @ 250 VDC. Standard switch includes one N.O. and one N.C. contact. Holds up to three individual isolated contacts. Part of the Stopper® Station series, which is a multipurpose push button series that covers a wide range of applications both indoors and outdoors. This product's unique, curved design helps protect against accidental activation.
Main Features
General Information
Name:STI SS20A1EX-EN Stopper Station Button with Shield and Sound, Turn-to-Reset, EMERGENCY EXIT Label, Red
Category:Safety Technology International, Access Control, Egress Devices & Alarms, Emergency & Lockdown Buttons
UPC Code:662950502746
Country of Origin:United States. Country of origin is subject to change.
Specifications
ADI Part Number SF-20A1EXEN Manufacturer Part Number SS20A1EX-EN Product Line Stopper Station Product Model SS20A1EX-EN Product Series SS2
Material Polycarbonate
Depth 1.62" Height 4.86" Width 3.22"
Limited Warranty 3-Year
