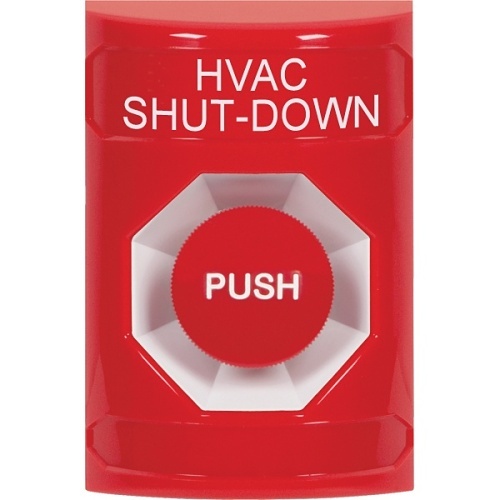

STI SS2004HV-EN Stopper Station Push Button, No Cover, Momentary, 'HVAC SHUT-DOWN' Label, Red
SS2004HV-EN
|SF-2004HVEN
Shop All Safety Technology International
STI SS2004HV-EN Stopper Station Push Button, No Cover, Momentary, 'HVAC SHUT-DOWN' Label, Red
SS2004HV-EN | SF-2004HVEN
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
This Stopper® Station, momentary push button switch is housed in a curved shell with HVAC SHUT-DOWN messaging. Interchangeable or replaceable N.O. or N.C., SPST gold-plated contact blocks rated for 3 amps @ 600 VAC or 1 amp @ 250 VDC. Standard switch includes one N.O. and one N.C. contact. Holds up to three individual isolated contacts. Part of the Stopper® Station series, which is a multipurpose push button series that covers a wide range of applications both indoors and outdoors. This product's unique, curved design helps protect against accidental activation.
Specifications
ADI Part Number SF-2004HVEN Manufacturer Part Number SS2004HV-EN Product Line Stopper Station Product Series SS2
Material Polycarbonate
Depth 1.62" Height 4.86" Width 3.22"
Limited Warranty 3-Year
