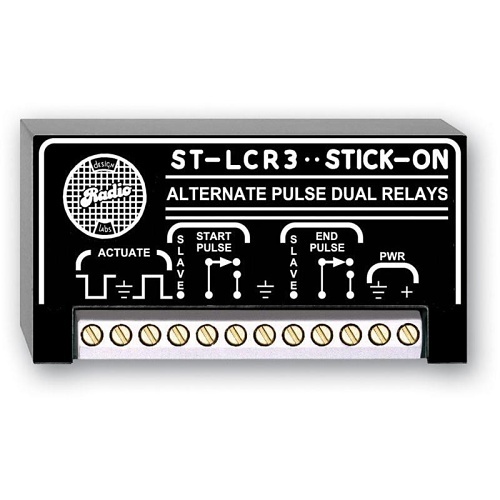

RDL ST-LCR3 Logic Controlled Relay Module, Dual Alternate Pulse, 3.3-24V DC Input
ST-LCR3
|RL-STLCR3
Shop All Radio Design Labs
RDL ST-LCR3 Logic Controlled Relay Module, Dual Alternate Pulse, 3.3-24V DC Input
ST-LCR3 | RL-STLCR3
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The ST-LCR3 is ideally suited to applications where momentary pulses are needed from a single control signal. The module provides a momentary pulse when a logic signal at its input first becomes active. A separate momentary pulse is provided when the logic signal at the module input becomes inactive.
Main Features
- Pulse at the Start of a Logic Signal
- Pulse at the End of a Logic Signal
- Relay Contact and Open-Collector Pulse
- Active High or Active Low Inputs
- Input Control Voltage From 3.3 to 24V DC
- Control from Switch, Pushbutton, or Logic Circuits
General Information
Name: RDL ST-LCR3 Logic Controlled Relay Module, Dual Alternate Pulse, 3.3-24V DC Input
Category: Radio Design Labs, Batteries & Power Supplies, Circuit Breakers, Fuses & Relays, Relays
UPC Code: 813721012272
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number RL-STLCR3 Brand Name Radio Design Labs Manufacturer Part Number ST-LCR3 Package Type Box
Maximum Operating Temperature 131.00°F Minimum Operating Temperature 32.0°F
