RDL D-TPSML1A Format-A Active Single-Pair Sender with XLR Mic/Line Input, Stainless Steel
D-TPSML1A|RL-DTPSML1A
RDL D-TPSML1A Format-A Active Single-Pair Sender with XLR Mic/Line Input, Stainless Steel
D-TPSML1A|RL-DTPSML1A
Radio Design Labs
RDL D-TPSML1A Format-A Active Single-Pair Sender with XLR Mic/Line Input, Stainless Steel
D-TPSML1A | RL-DTPSML1A
Veuillez vous connecter pour voir les tarifs, consulter la disponibilité des produits et ajouter des articles à votre panier.
Aperçu
Spécifications
Documents
Aperçu

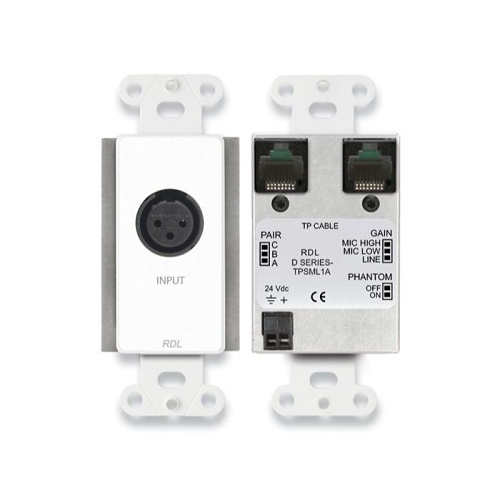

The D SERIES-TPSML1A modules feature an XLR microphone or line input. The module provides IEC P24 phantom and accepts input signals from balanced line-level sources or from both dynamic and condenser microphones. The input signal is buffered or amplified using a studio-quality preamplifier optimized for normal operating levels. For microphone sources, the rear-panel GAIN switch is normally set by the installer for MIC LOW gain. If consistently low mic levels are expected, this switch may be set to the MIC HIGH gain position. For line-level sources, the GAIN switch is set to LINE. In either MIC gain position, the PHANTOM voltage is used to set mic phantom ON or OFF. Phantom voltage is not applied when the input is set to LINE.
Principales caractéristiques
Renseignements généraux
Nom:ACTIVE SINGLE PAIR SENDER TWISTED PAIR F
Category:Radio Design Labs, Pro AV, Commercial Audio, Pro Wall Plates
UPC Code:840488800415
Country of Origin:United States. Country of origin is subject to change.
Spécifications
ADI Numéro du produit RL-DTPSML1A Code fabricant D-TPSML1A Marque Radio Design Labs
