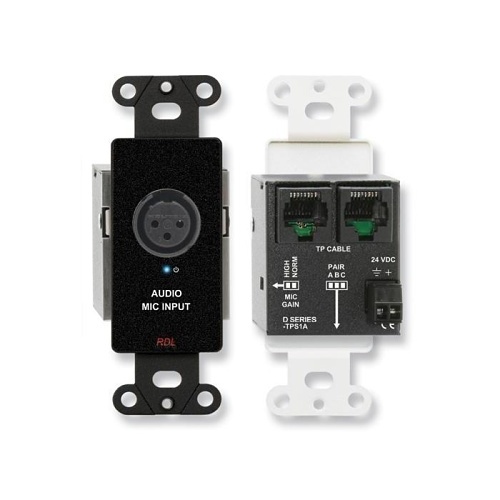

Image of RL-DBTPS1A
Acheter Radio Design Labs

RDL DB-TPS1A Active Single-Pair Sender, Twisted Pair Format-A, XLR Microphone Input with Phantom

DB-TPS1A|RL-DBTPS1A
Acheter Radio Design Labs

RDL DB-TPS1A Active Single-Pair Sender, Twisted Pair Format-A, XLR Microphone Input with Phantom

DB-TPS1A|RL-DBTPS1A

Se connecter prix revendeur

Devenir client ADI
Radio Design Labs

RDL DB-TPS1A Active Single-Pair Sender, Twisted Pair Format-A, XLR Microphone Input with Phantom

DB-TPS1A | RL-DBTPS1A

Veuillez vous connecter pour voir les tarifs, consulter la disponibilité des produits et ajouter des articles à votre panier.

Aperçu
Spécifications
Documents

Aperçu

The D SERIES-TPS1A modules are single-pair audio sending modules compatible with RDL Format-A twisted pair products. These modules are designed to be mounted in wall boxes, cabinets or other enclosures that allow users to connect audio sources. The -TPS1A models mount in RDL WB-1U and WB-2U wall boxes, or in standard U.S. electrical boxes. The D-TPS1A features a white front-panel laminate with gray lettering that matches RDL Decora-style remote controls. The DB-TPS1A features a black front-panel laminate. The DS-TPS1A is constructed of stainless steel to coordinate with RDL Decora-style stainless steel remote controls in commercial/industrial installations.

Principales caractéristiques

  • Balanced Microphone XLR Input with Phantom
  • Switch-Selectable Mic Gain on Rear Panel
  • Switch Selects which RJ45 Pair (A, B or C) is Fed
  • Signal and Power Pair Pass-Through on RJ45 Jacks
  • Remote Powering through Twisted Pair Cable
  • Fused Local Power Feeds all Connected Modules
  • Local Power Input on Terminal Block
  • Blue LED Indicates Module is Powered
  • Daisy-Chain with Single-Pair or Two-Pair Senders
  • Studio-Quality Precision Active Balanced Circuitry

    • Renseignements généraux

    Nom:RDL DB-TPS1A Active Single-Pair Sender, Twisted Pair Format-A, XLR Microphone Input with Phantom
    Category:Radio Design Labs, Residential AV, Pro AV, Residential Audio, Commercial Audio, Pro Wall Plates, Home AV Receivers
    UPC Code:
    Country of Origin:United States. Country of origin is subject to change.

    Spécifications

    Documents et ressources sur les produits

    Fiche de produit
