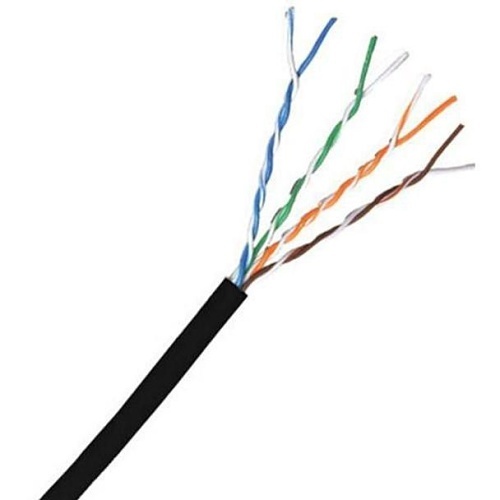

Comprehensive CAT6SHSTBLK-1000 1000' CAT6 Shielded Stranded Cable, 550MHz, 24AWG, Black
CAT6SHSTBLK-1000
|RH-C6STBLK1
Shop All Comprehensive
Comprehensive CAT6SHSTBLK-1000 1000' CAT6 Shielded Stranded Cable, 550MHz, 24AWG, Black
CAT6SHSTBLK-1000 | RH-C6STBLK1
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Category 6 550MHz local area network cable. 4 shielded twisted pairs, stranded 24 awg. Supports all category 6 applications including Ethernet 100BASE -TX, 100BASE-VG and 155 ATM. Particularly suited for high bandwidth applications such as 622 ATM, Wideband, Ethernet 1000BASE-T and emerging applications with anticipated data rates to 3.2 Gbps. UL listing NEC,CMR/FT4. Nominal O.D. is 0.26 inches. Meets all requirements as set forth in the Telecommunications Industry Association's standard 568 and 570 recommendations. Foot-marked cable is packaged in a pull box for easier installation.
Main Features
- High-Performance Data Communications Cable for Noisy Environments
- Suitable for 550MHz High-Speed Data Applications, Gigabit Ethernet, Fast Ethernet and 155Mbps TP-PMD/CDDI
- Category-6 Shielded Twisted Pair (FTP) Cable
- 4-Pair - Easily Identified Color-Striped Pairs
- 24AWG Stranded Bare Copper Conductors
- Excellent Attenuation and Crosstalk Characteristics
- Exceeds EIA/TIA 568 B.2-1, UL, CSA and ISO/IEC 11801 specifications
- UL/cUL or ETL Listed
- Sequential foot markers
General Information
Name: Comprehensive CAT6SHSTBLK-1000 1000' CAT6 Shielded Stranded Cable, 550MHz, 24AWG, Black
Category: Comprehensive, Wire & Cable, Network Cables, Category 6 Network Cables
UPC Code: 808447068344
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number RH-C6STBLK1 Brand Name Comprehensive Manufacturer Part Number CAT6SHSTBLK-1000 Package Type Box
American Wire Gauge 24AWG Cable Type Category 6 Patch Cables Impedance 100Ohm Number of Conductors 4 Number of Pairs 4 Shielding Yes Solid or Stranded Stranded
Data Transfer Rate 3Gbps
Cable Length 1000.00' Color Black Material PVC
Limited Warranty Lifetime Warranty
Environmental Certification CSA, RoHS, UL Environmentally Friendly Yes Features 24AWG Stranded Bare Copper Conductors, 4-Pair - Easily Identified Color-Striped Pairs, Category-6 Shielded Twisted Pair (FTP) Cable, Exceeds EIA/TIA 568 B.2-1, UL, CSA and ISO/IEC 11801 specifications, Excellent Attenuation and Crosstalk Characteristics, High-Performance Data Communications Cable for Noisy Environments, Sequential foot markers, Suitable for 550MHz High-Speed Data Applications, Gigabit Ethernet, Fast Ethernet and 155Mbps TP-PMD/CDDI, UL/cUL or ETL Listed
