Potter 1340425 PS252 High/Low Pressure Indicator
1340425|PL-1340425
Potter 1340425 PS252 High/Low Pressure Indicator
1340425|PL-1340425
Potter Electric Signal, LLC
Potter 1340425 PS252 High/Low Pressure Indicator
1340425 | PL-1340425
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

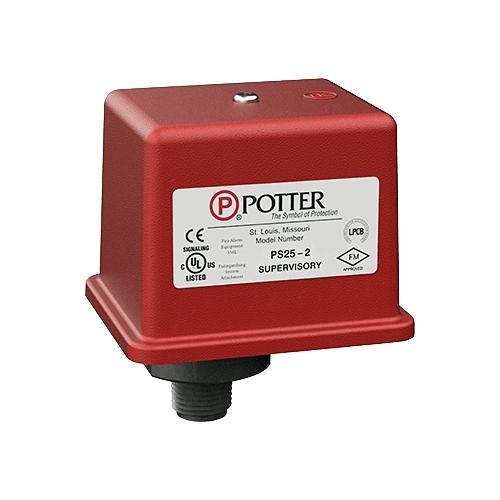

The Potter PS25 Series Supervisory Pressure Actuated Switches are designed primarily to detect an increase and/or decrease from normal system pressure in automatic fire sprinkler systems. Typical applications are; air/nitrogen supervision in dry pipe and pre-action systems, pressure tanks, air supplies, and water supplies. The PS25-2 has two switches. The Low switch is factory set to activate at approximately 18 psi (1,2 bar) on a decrease in pressure. The High switch is factory set to activate at approximately 28 psi (1,9 bar) on an increase in pressure.NFPA 72 requires a supervisory signal for both high and low-pressure conditions. The PS25 is factory-set for a normal air pressure of 23 psi.
Main Features
General Information
Name:Potter 1340425 PS252 High/Low Pressure Indicator
Category:Potter Electric Signal, LLC, Fire, Water Flow Controls, ADI Pro Rewards
UPC Code:
Country of Origin:. Country of origin is subject to change.
Specifications
ADI Part Number PL-1340425 Brand Name Potter Electric Signal, LLC Manufacturer Potter Electric Signal, LLC Manufacturer Part Number 1340425 Product Name Pressure switch with two sets SPDT contacts Product Type Pressure Switch
Depth 3.2" Height 4.22" Width 3.78"
