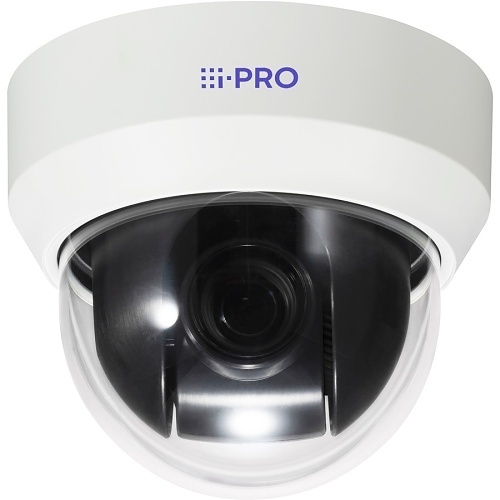

i-PRO WV-U65301-Z1 Series 2MP PTZ Camera with 10x Optical Zoom, 144 dB, IP66 IK10, White
WV-U65301-Z1
|PA-WU65301Z1
Shop All i-PRO
i-PRO WV-U65301-Z1 Series 2MP PTZ Camera with 10x Optical Zoom, 144 dB, IP66 IK10, White
WV-U65301-Z1 | PA-WU65301Z1
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
U-Series launch gives customers PTZ's that meet top security certifications (FIPS 140-2 level 3) while also providing a unique blend of imaging performance, reliability and affordability.
Highly durable pan-tilt drive unit Reduced maintenance costs
- High durability gear drive achieves PAN and TILT drive durability (3.7 million P&T movements). Low failure rate even with high frequency drive and reduced maintenance cost by minimizing the maintenance cycle.
Easy installation
- Both pigtail or gromet are available to be flexibly to adapt to the installation environment.
Easy Kitting will also save your time for installation.
High security standard
- Highest level of security. In addition to digital certificates issued by a third-party organization (GlobalSign®), FIPS 140-2 level3-certified hardware is installed.
Main Features
- For remote surveillance needs, this network camera is best suited
- Up to 2048 x 1536 resolution for surveillance in real-time
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
- 47 mm maximum focal length with sharp output to help identify and locate the object with added efficiency
- 10x optical zoom ensures maximum surveillance productivity without compromising quality
- Color night vision type for better usability and increased surveillance efficiency
- Varifocal lens type for sharp, detailed focus to ensure maximum surveillance usability
- PoE power source type for your network camera better reliance and maximum energy dependability
- Audio Detection feature for maximum productivity with added dependability
- Wired connectivity technology delivers exceptional performance to offer maximum usability
General Information
Name: i-PRO WV-U65301-Z1 Series 2MP PTZ Camera with 10x Optical Zoom, 144 dB, IP66 IK10, White
Category: i-PRO, Video Surveillance, IP Cameras, PTZ Security Cameras
UPC Code: 195514000902
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number PA-WU65301Z1 Brand Name i-PRO Manufacturer i-PRO Manufacturer Part Number WV-U65301-Z1 Product Model WV-U65301-Z1 Product Name 2MP (1080p) 10x Outdoor PTZ Network Camera Product Series U Product Type Network Camera
Aspect Ratio 16:9 Connectivity Technology Wired Field of View Horizontal, Vertical Lens Type Varifocal Maximum Frame Rate 60fps Minimum Focal Length 4.70mm Night Vision Yes Night Vision Type Color Optical Zoom 10.0x Video Formats H.264, H.265, MJPEG
Image Sensor Type CMOS
Ingress Protection Rating IP66
Maximum Video Resolution 2048 x 1536
Maximum Operating Temperature 131°F Minimum Operating Temperature -22°F Operating Humidity 100%
Longest Shutter Speed 1/25 Second Shortest Shutter Speed 1/10000 Second
Network (RJ-45) Yes
Focal Length 47mm Lens Included Yes Maximum Focal Length 47.00mm
Remote Management Yes
Color White Durability Corrosion Resistant, Dust Resistant, Impact Resistant, Shock Resistant, Waterproof Height 5.50" Weight 3.53lb
Input Voltage 12V DC, 48V DC, 54V DC
Diameter 6.50" Mount Type Bracket Mount
Storage Type Memory Card
Maximum Resolution 1280 x 720
Features Audio Compression, Audio Detection, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in Mechanical ICR, Built-in OSD Function, Digital Noise Reduction, Highlight Compensation (HLC), Motion Detection, SD Card Local Storage Impact Protection Rating IK10 Indoor/Outdoor Outdoor
