Product Overview

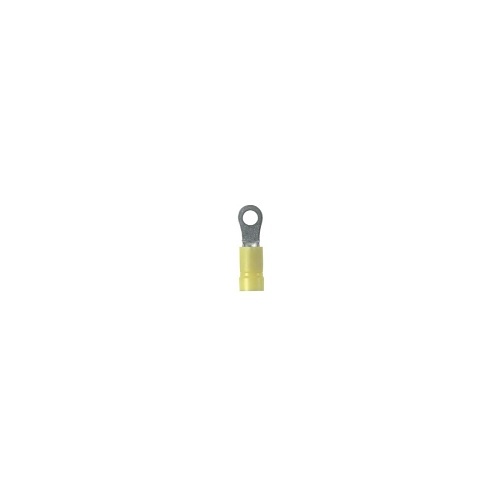

The PV10-56R-L Pan-Term Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.
Main Features
- Vinyl insulated ring terminal for 12-10AWG wire sizes
- Brazed seam protects terminal barrel from splitting during crimping
- Internal barrel serrations provide strong wire contact and maximum tensile strength
General Information
Name: Panduit PV10-56R-L Ring Terminal, 12-10AWG, Vinyl Insulated
Category: Panduit, Batteries & Power Supplies, Power Accessories & Parts
UPC Code: 74983801367
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-PV1056RL Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number PV10-56R-L Product Name Terminal Connector Product Type Terminal Connector
American Wire Gauge 10AWG
Color Yellow Material Copper Width 0.50"
Length 1.20"
Limited Warranty 1-Year
Compatibility CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) Environmentally Friendly Yes Features Brazed Seam
