Panduit PCSB2/0-2-12 Multi-Tap Connector, Double-Sided, Clear
PCSB2/0-2-12
|P9-PCSB20212
Shop All Panduit
Panduit PCSB2/0-2-12 Multi-Tap Connector, Double-Sided, Clear
PCSB2/0-2-12 | P9-PCSB20212
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

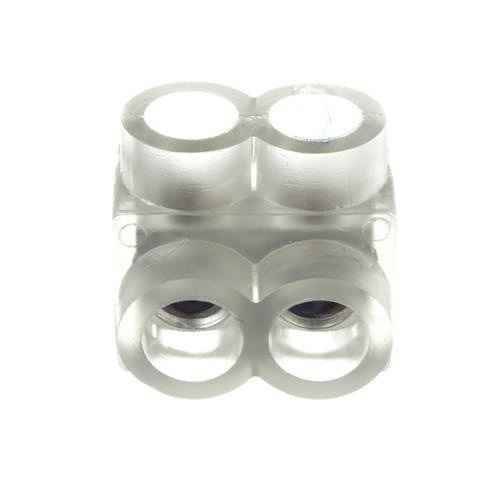

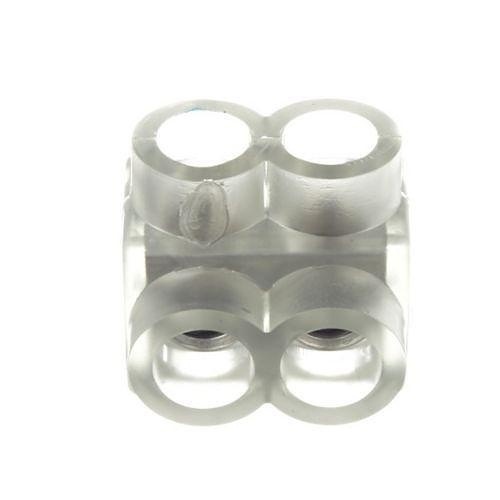

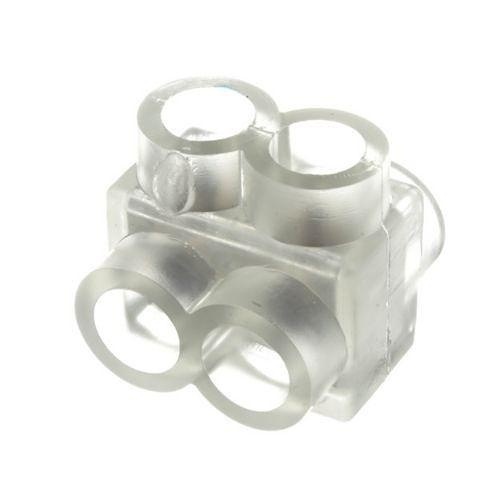

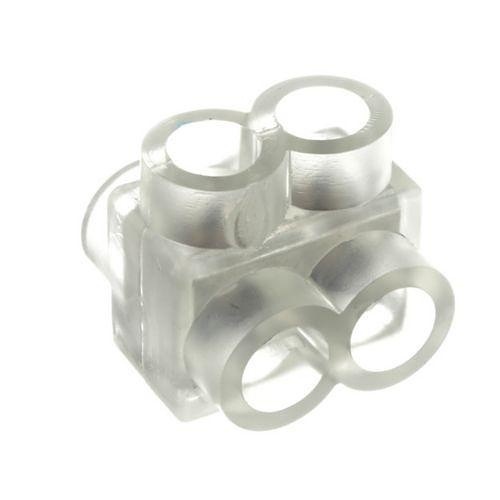

The PCSB2/0-2-12 Multi-Tap Mechanical Lug has a flexible design that can be used as a tap, splice, or dead-end Lug. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. UL Listed and CSA Certified.
Main Features
- Multi-Tap, Splice, or Dead-End Lug
- High Strength Extruded Aluminum Alloy
- Premium Electrical and Mechanical Performance
- Clear PVC Insulation for Visual Inspection
- UL Listed and CSA Certified
General Information
Name: Panduit PCSB2/0-2-12 Multi-Tap Connector, Double-Sided, Clear
Category: Panduit, Data Comm & Networking, Cable Connectors, Splice Connectors
UPC Code: 74983774487
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-PCSB20212 Brand Name Panduit Country of Origin US Manufacturer PANDUIT CORP Manufacturer Part Number PCSB20212 Packaged Quantity 12 Product Line Pan-Lug Product Name PCSB2/0-2-12 Multi-Tap Mech Con, Double Sided, 2/0, Tin Plt Al, PK12 Product Type Terminal Connector
Connector Type Multi-tap Terminal Number of Ports 2
Color Clear Height 1.40" Material Aluminum, Aluminum Alloy Width 1.60"
Voltage Rating 600V
Length 1.50"
Limited Warranty 1-Year
Features Double Sided, Flexible, Right-angled Connector
