Panduit

Panduit P4-56R-E Ring Terminal, Large Wire, NO

P4-56R-E | P9-P456RE

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

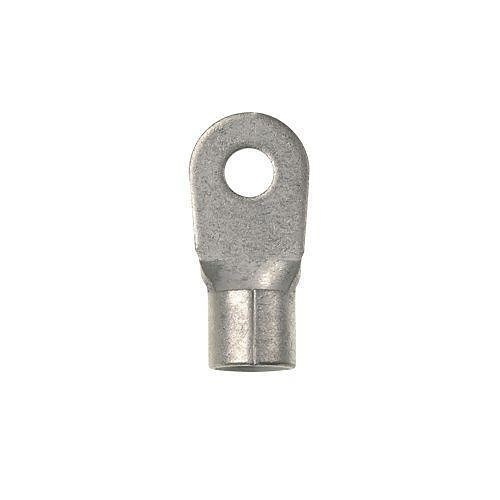

Ring terminal, large wire, 4 AWG, 5/16" stud size, non-insulated, standard package.

Main Features

  • Designed for use with #8 - #2 AWG copper wire
  • Ring tongue design assures a secure connection in high vibration applications
  • Internal barrel serrations assure good wire contact and maximum tensile strength
  • Brazed seam protects terminal barrel from splitting during the crimp process
  • Barrel of terminal internally beveled to provide quick and easy wire insertion
  • Maximum recommended operating temperature 302°F (150°C)
  • UL and CSA rated up to 2000 V per UL 486A/B

    • General Information

    Name:Panduit P4-56R-E Ring Terminal, Large Wire, NO
    Category:Panduit, Data Comm & Networking, Cable Connectors, Wire Connectors
    UPC Code:074983870578
    Country of Origin:. Country of origin is subject to change.
