Panduit LCD2/0-14B-X Compression Connector Lug, 2-Hole, 2/0AWG, Copper
LCD2/0-14B-X|P9-LCD2014BX
Panduit LCD2/0-14B-X Compression Connector Lug, 2-Hole, 2/0AWG, Copper
LCD2/0-14B-X|P9-LCD2014BX
Panduit
Panduit LCD2/0-14B-X Compression Connector Lug, 2-Hole, 2/0AWG, Copper
LCD2/0-14B-X | P9-LCD2014BX
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

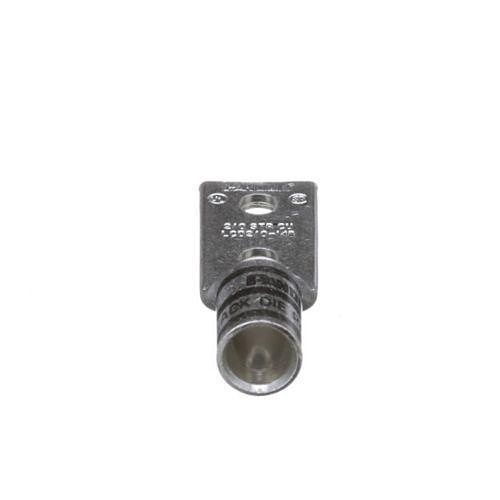

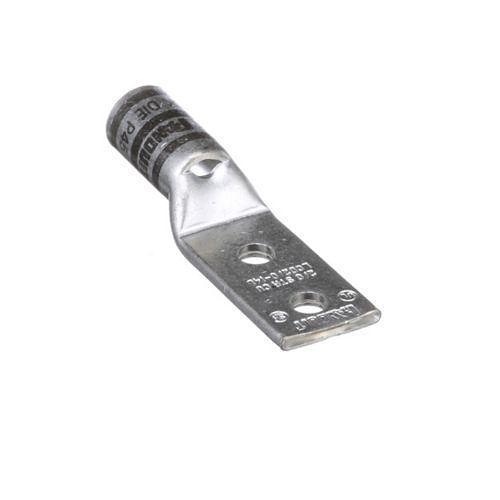

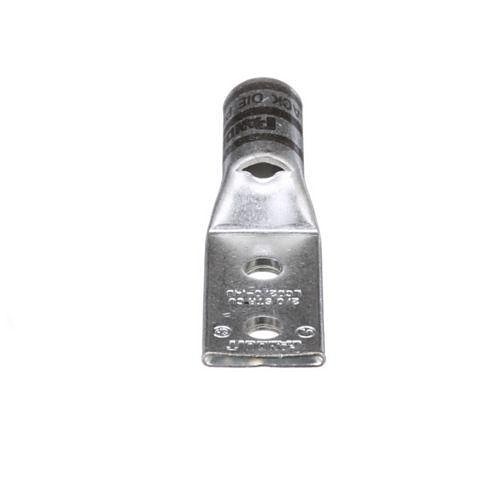

The LCD2/0-14B-X Tin-Plated Copper Compression Lug, 2-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 kV and temperature rated to 90°C.
General Information
Name:Panduit LCD2/0-14B-X Compression Connector Lug, 2-Hole, 2/0AWG, Copper
Category:Panduit, Batteries & Power Supplies, Power Accessories & Parts
UPC Code:074983383252
Country of Origin:. Country of origin is subject to change.
Specifications
ADI Part Number P9-LCD2014BX Brand Name Panduit Manufacturer Part Number LCD2/0-14B-X Product Type Terminal Connector
Material Copper
Length 2.8"
Limited Warranty 1-Year
Environmentally Friendly Yes Features Corrosion Resistant
