Panduit LCAS6-14-L Compression Connector Lug, 1-Hole, #6AWG, Copper
LCAS6-14-L | P9-LCAS614L
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

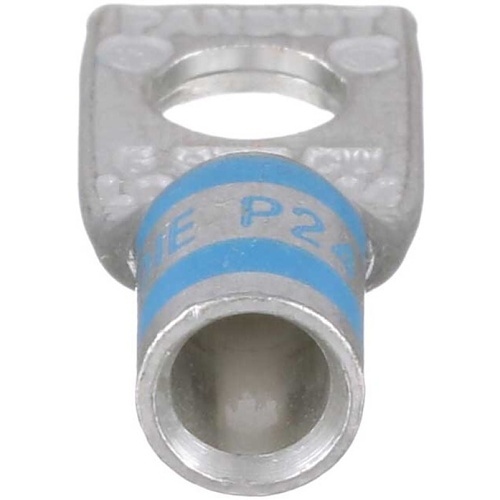

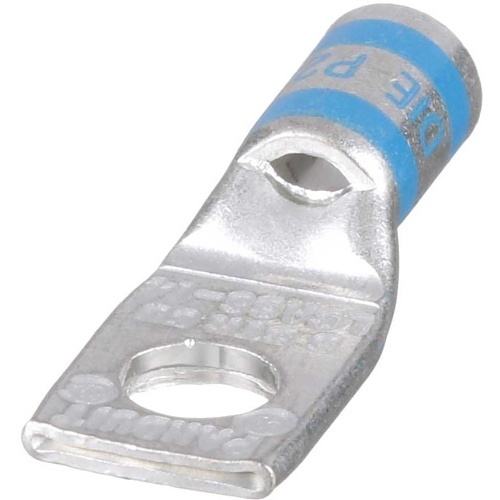

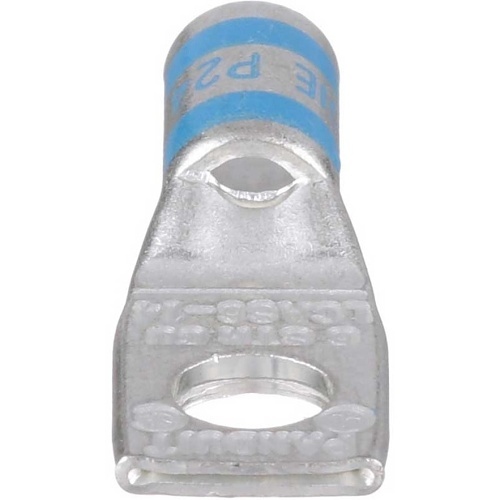

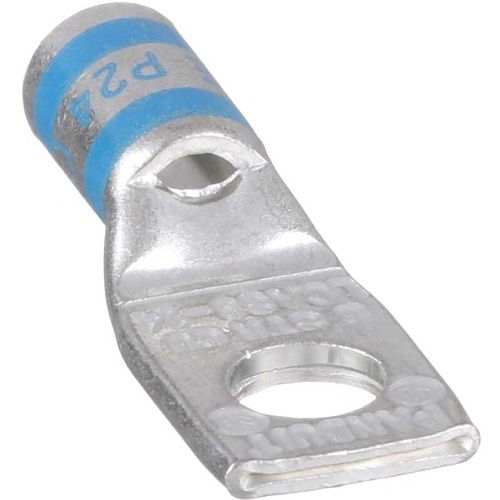

The LCAS6-14-L Tin-Plated Copper Compression Lug, one-hole, short barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
Main Features
- Tin-Plated Copper for Corrosion Resistance
- Color-Coded Barrels for Easy Crimp Die Selection
- Inspection Window for Full Conductor Insertion
- UL Listed and CSA Certified to 35 KV
- Temperature Rated to 90°C
- Short Barrel Design
- 1-Hole for Secure Connection
General Information
Name: Panduit LCAS6-14-L Compression Connector Lug, 1-Hole, #6AWG, Copper
Category: Panduit, Batteries & Power Supplies, Power Accessories & Parts
UPC Code: 74983225224
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-LCAS614L Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number LCAS6-14-L Product Line Pan-Lug Product Name LCAS6-14-L Copper Compression Lug Product Type Grounding Lug
Color Blue Material Tin Plated Copper
Length 1.30"
Limited Warranty 1-Year
Additional Information - Inside Diameter (In.)0.22
- Inside Diameter (mm) 5.58
- Outer Diameter (In.) 0.31
- Outer Diameter (mm)7.87
- Product Type: Tin-Plated Copper Compression Connectors - Lugs
- Lug Type: 1 Stud Hole
