Panduit LCAN4/0-38-X Copper Compression Connector Lug, 1-Hole, 4/0AWG
LCAN4/0-38-X
|P9-LCAN4038X
Shop All Panduit
Panduit LCAN4/0-38-X Copper Compression Connector Lug, 1-Hole, 4/0AWG
LCAN4/0-38-X | P9-LCAN4038X
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

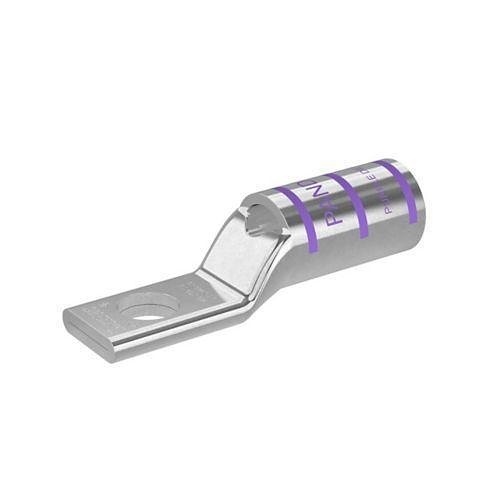

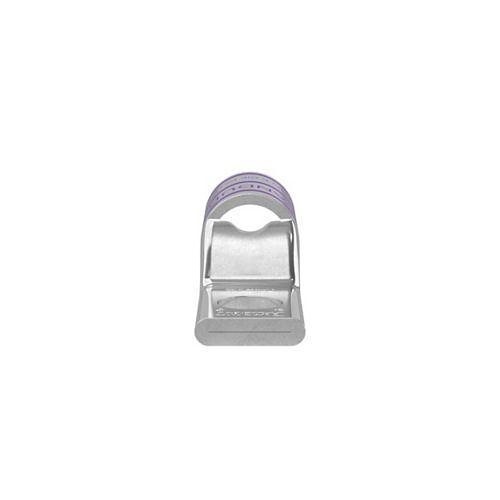

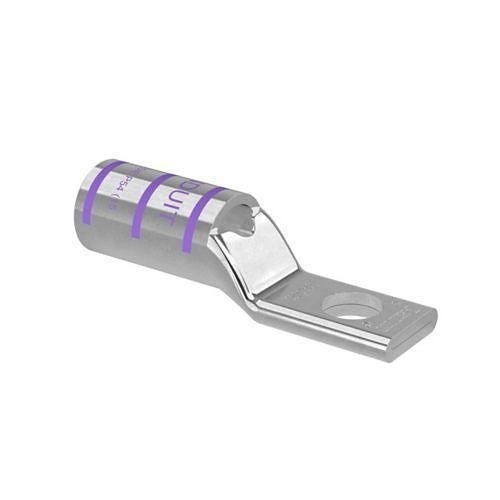

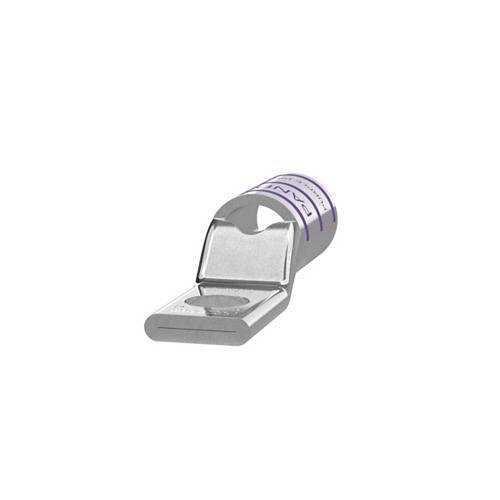

The LCAN4/0-38-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, narrow-tongue, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 kV and temperature rated to 90°C.
Main Features
- Tin-plated copper construction for corrosion resistance
- One-hole design with standard barrel and narrow tongue
- Color-coded barrels marked with Panduit and competitor die index numbers for crimp die selection
- Inspection window for visual verification of full conductor insertion
- UL Listed and CSA Certified to 35 kV
- Temperature rated to 90°C
General Information
Name: Panduit LCAN4/0-38-X Copper Compression Connector Lug, 1-Hole, 4/0AWG
Category: Panduit, Batteries & Power Supplies, Power Accessories & Parts
UPC Code: 74983603404
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-LCAN4038X Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number LCAN4/0-38-X Product Name Terminal Connector Product Type Terminal Connector
Material Copper
Length 3.10"
Environmentally Friendly Yes Features Angled Connector
