Panduit LCA8-38-L Compression Connector Lug, 1-Hole, #8AWG, Copper
LCA8-38-L
|P9-LCA838L
Shop All Panduit
Panduit LCA8-38-L Compression Connector Lug, 1-Hole, #8AWG, Copper
LCA8-38-L | P9-LCA838L
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

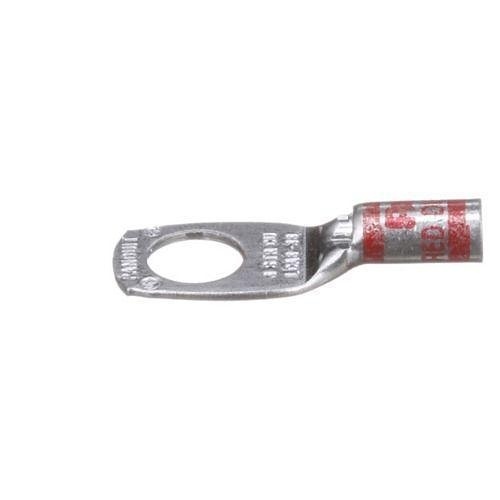

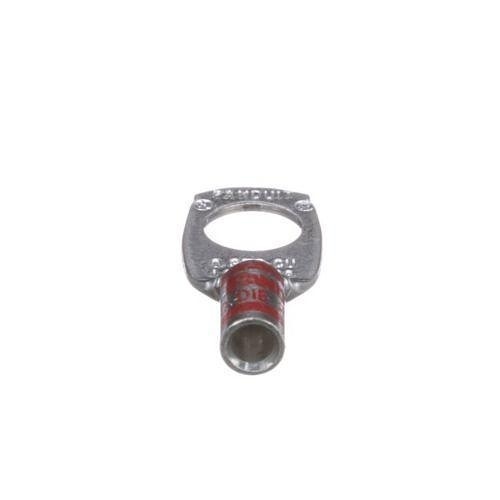

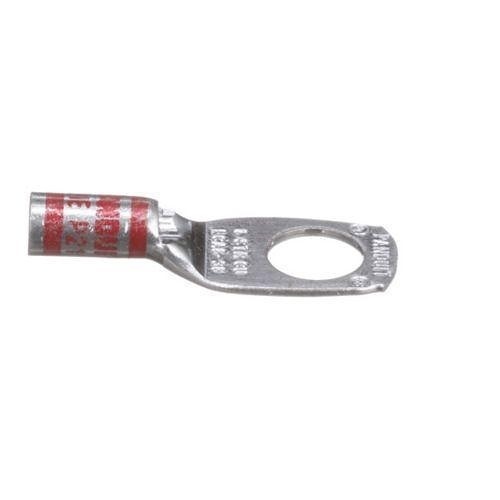

The LCA8-38-L Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
Main Features
- Tin-plated copper compression lug for corrosion resistance
- One-hole standard barrel design
- Color-coded barrels with Panduit and competitor die index numbers
- Inspection window for visual full conductor insertion
- UL Listed and CSA Certified to 35 KV
- Temperature rated to 90°C
General Information
Name: Panduit LCA8-38-L Compression Connector Lug, 1-Hole, #8AWG, Copper
Category: Panduit, Batteries & Power Supplies, Power Accessories & Parts
UPC Code: 74983900886
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-LCA838L Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number LCA8-38-L Product Name Terminal Connector Product Type Terminal Connector
Material Copper
Length 3.40"
Environmentally Friendly Yes Features Angled Connector
